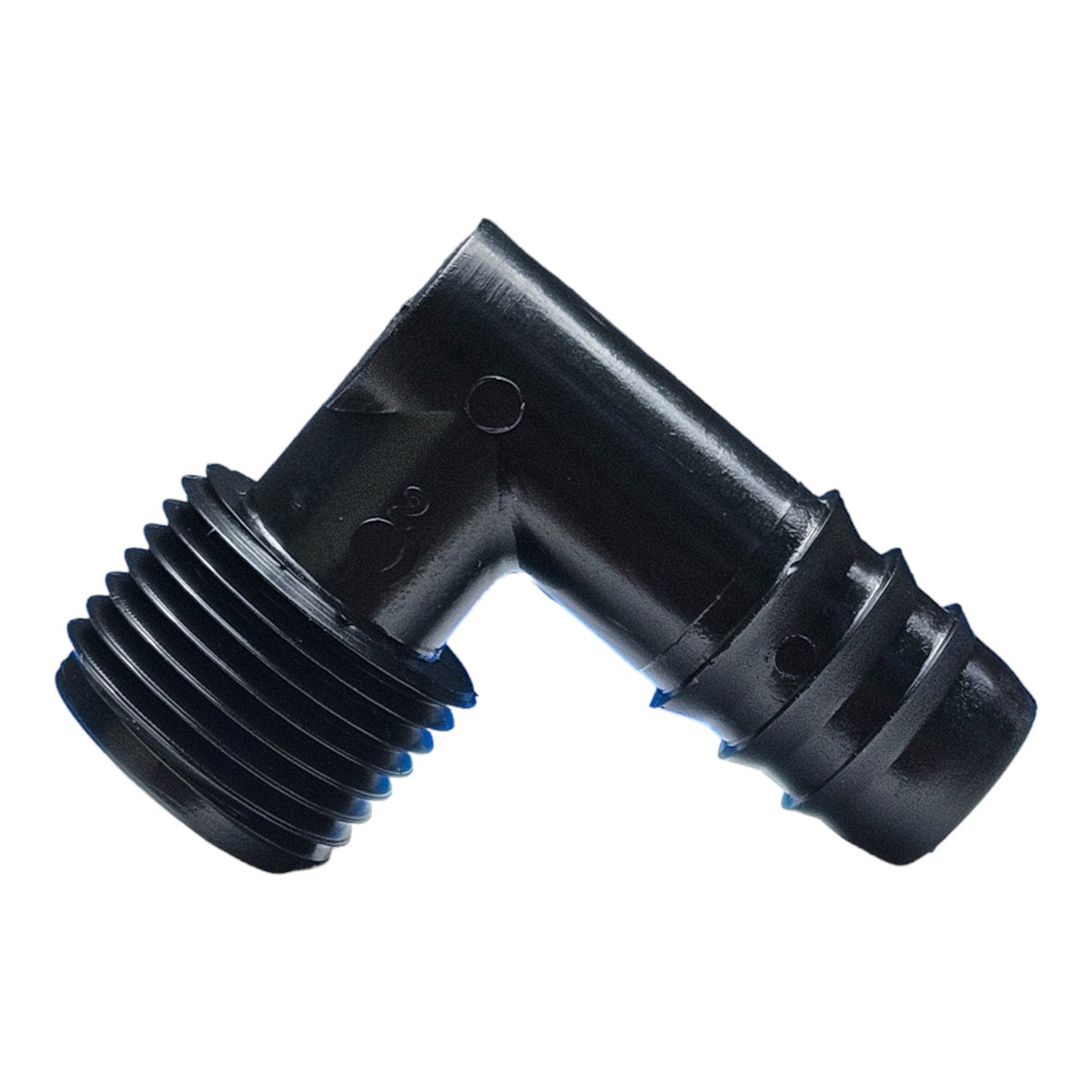

046116 – Fitting Elbow .50 × .50 (Hydraulic) – Gravely OEM Part
The 046116 fitting elbow (.50 × .50) is a genuine Gravely OEM hydraulic fitting designed for use in hydraulic systems on Gravely professional walk-behind and tractor models. This elbow fitting allows a 90-degree change in hydraulic line direction while maintaining proper flow and pressure, making it essential for tight routing areas within the hydraulic circuit.
Manufactured to OEM specifications, the 046116 elbow fitting ensures leak-free connections, proper thread engagement, and long service life under high-pressure hydraulic conditions. Replacing worn or damaged fittings helps prevent hydraulic leaks, pressure loss, and system failure.
Key Features:
-
Part Number: 046116
-
Description: Fitting Elbow .50 × .50
-
Type: Hydraulic elbow fitting (90°)
-
Application: Hydraulic system / filter & tank assemblies
-
OEM Status: Genuine Gravely replacement part
-
Benefits: Proper hose routing, leak prevention, reliable hydraulic performance
Compatible Gravely Models
(Listed in three columns to reduce vertical space)
PM / Pro Series
PM300 18-H (18hp Kohler)
PM300 20-H (20hp Kohler / Onan)
Pro 300 (all variants)
Pro 300 14hp Kawasaki
Pro 300 16hp B&S
Pro 300 18hp Kohler
Pro 300 20hp Kohler
Pro 300 22hp Robin
24-G / Professional Tractors
24-G
Professional 24-G
4-Wheel Tractor Professional 24-G
PM-350 21hp Kubota
PM-350 20hp Kawasaki
Model & Serial Groups
46000 · 46001 · 47147 · 47346 · 47510 · 51000
53100 · 53271 · 53272
987007 · 987054
988019 · 988058 · 988064 · 988065 · 988073 · 988076
988083 · 988084 · 988090 · 988093
988307 · 988310
989006 · 989041 · 989042 · 989043
990003 · 990004 · 990300
Notes:
-
Used primarily in hydraulic systems and filter/tank assemblies
-
Always verify hose size, thread type, and system pressure requirements before installation
-
Recommended to replace sealing washers or thread sealant as specified by the service manual
