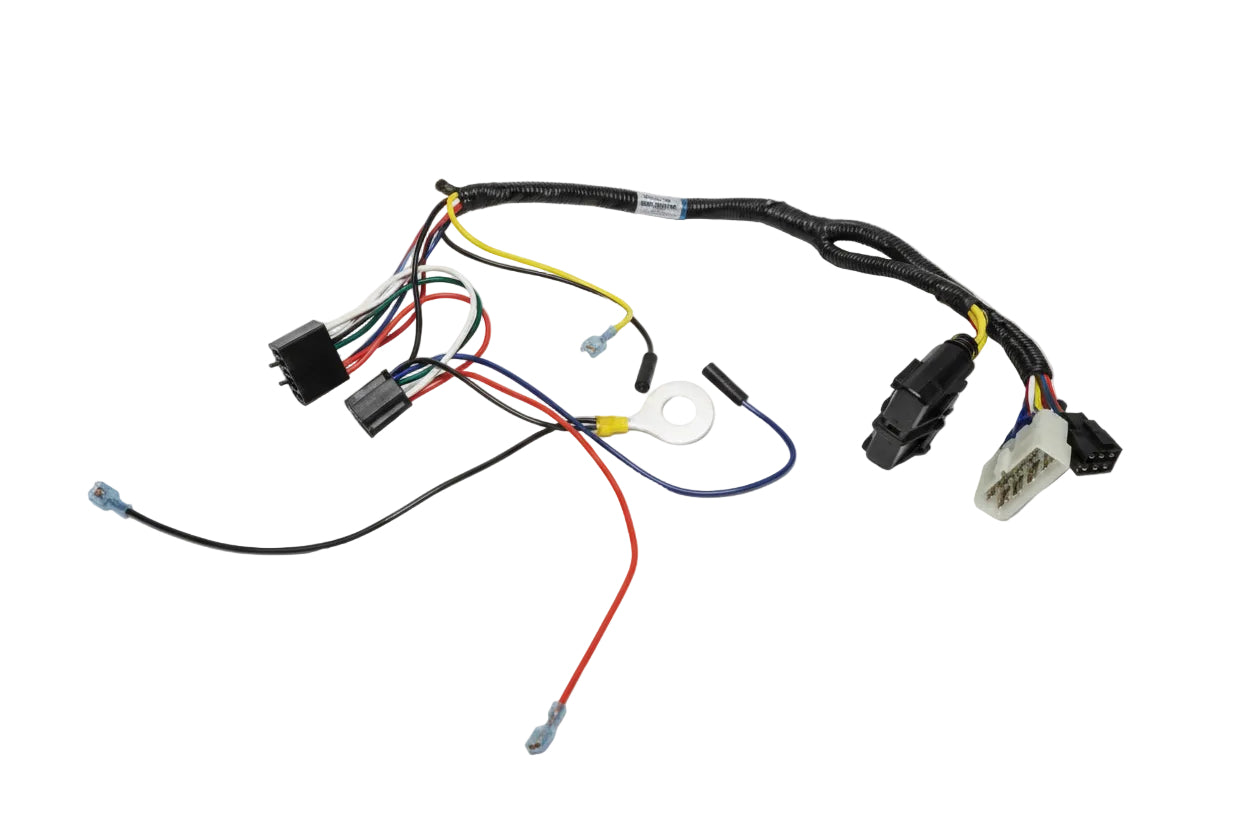

53490004 – Wright Instrument Panel Electrical Harness (OEM-Spec)
The Wright 53490004 Instrument Panel Electrical Harness is a genuine OEM-spec wiring assembly engineered to provide reliable electrical connectivity between the operator control panel and key mower systems on Wright commercial turf equipment. Designed to Wright Manufacturing’s exact standards for fit, durability, and secure electrical performance, this harness supports proper function of ignition controls, switches, gauges, and safety circuits. Built for demanding commercial mowing environments, the 53490004 harness helps ensure dependable operation, clean signal transmission, and long-term electrical system integrity.
Product Details
Manufacturer Part Number: 53490004
Brand: Wright (OEM-Spec)
Part Type: Instrument Panel Wiring Harness
Function: Electrical connection and signal routing for operator controls
Application: Wright commercial mowers with electric instrument/control panels
Harness Style: Pre-terminated OEM wiring assembly with connectors
Mounting Location: Operator control/instrument panel area
Construction: Heavy-duty insulated wiring with sealed connectors (as equipped)
OEM Status: Genuine Wright replacement part
Function
Provides organized electrical routing for instrument panel components
Connects ignition switch, blade switch, throttle controls, and indicators
Supports proper operation of safety interlock and start/run circuits
Ensures consistent power delivery to dashboard-mounted controls
Reduces risk of electrical faults caused by worn or damaged wiring
Compatible With
The Wright 53490004 Instrument Panel Harness is used on select Wright commercial mowing equipment, including:
Wright stand-on and zero-turn mowers with integrated instrument panels
Models requiring OEM electrical harness part number 53490004
Equipment specified in Wright parts diagrams for instrument panel wiring assemblies
Because wiring harnesses vary by model and serial range, always confirm compatibility using your mower’s exact model and serial number before ordering.
How It’s Used
This harness installs behind the operator control panel and interfaces with the mower’s main electrical system:
Turn off the mower and disconnect the battery before servicing.
Remove the instrument panel cover or access panels as required.
Label and disconnect connectors from the existing harness carefully.
Remove mounting clips or fasteners securing the old harness.
Install the Wright 53490004 harness along the factory routing path.
Reconnect all OEM connectors firmly and secure with proper clips.
Reconnect battery power and test all panel functions (ignition, blade switch, indicators).
Proper installation ensures safe and reliable electrical control during operation.
Suggested Maintenance
Inspect harness routing regularly for abrasion or pinch points
Check connectors for corrosion, moisture intrusion, or loose engagement
Keep the instrument panel area clean to prevent debris buildup
Replace harness immediately if wires become frayed or electrical faults occur
Use only OEM-spec Wright harness assemblies for correct fit and safe operation
The Wright 53490004 Instrument Panel Electrical Harness is a dependable OEM-spec replacement designed to restore proper control panel connectivity, ensure reliable mower operation, and maintain long-term electrical system performance on compatible Wright commercial turf equipment.
