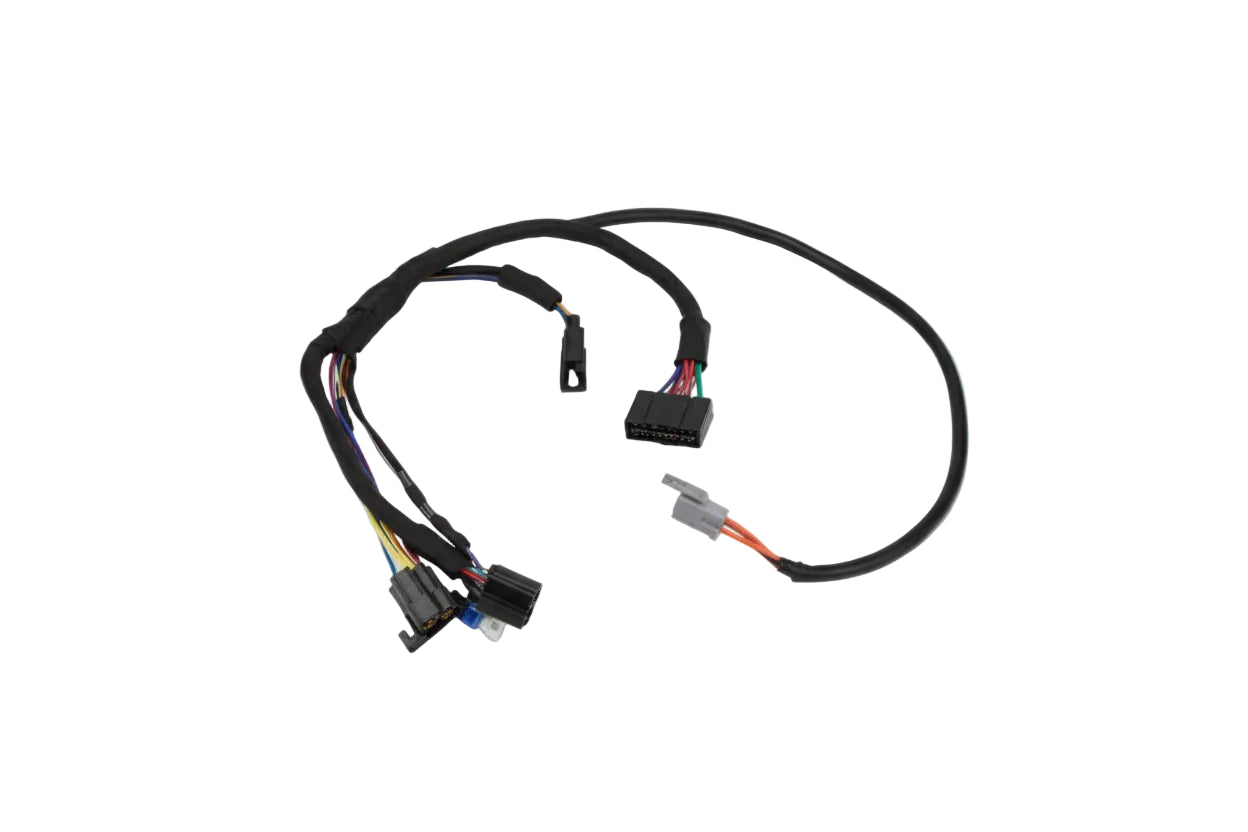

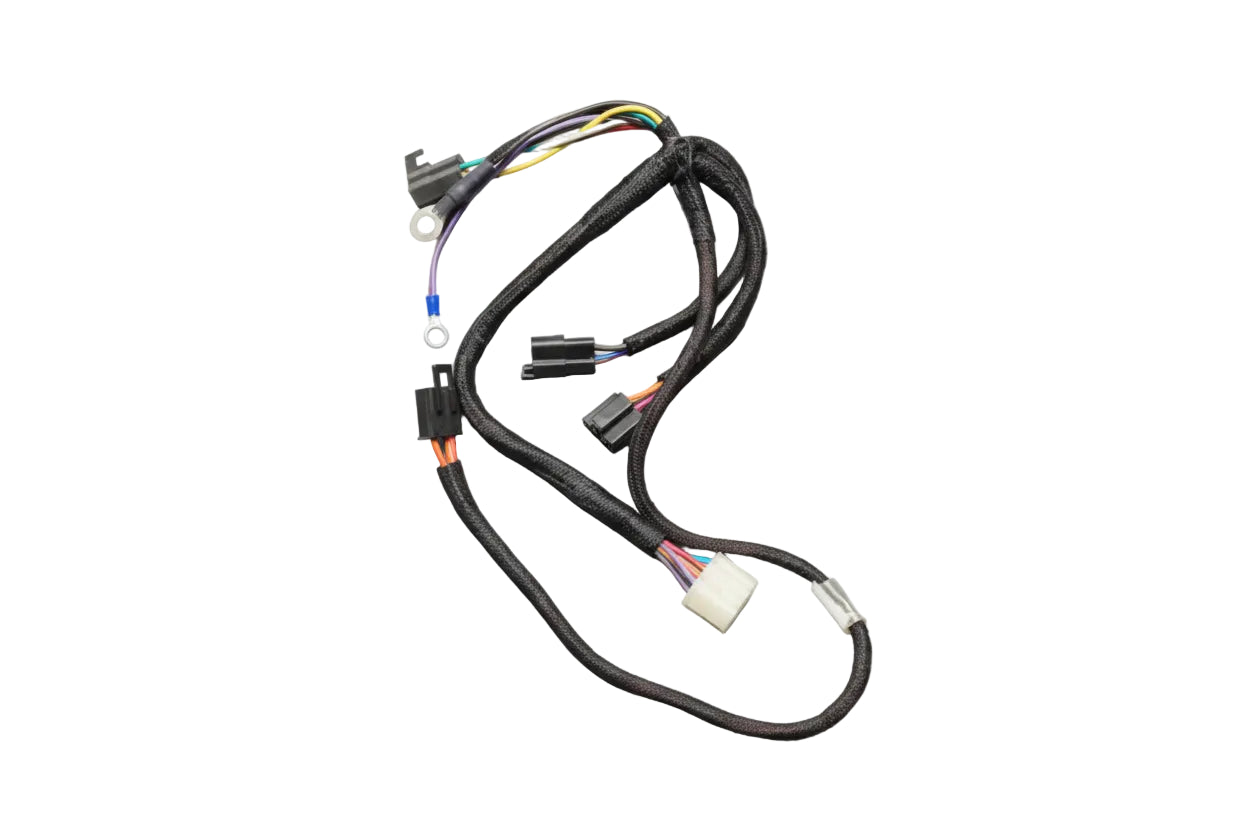

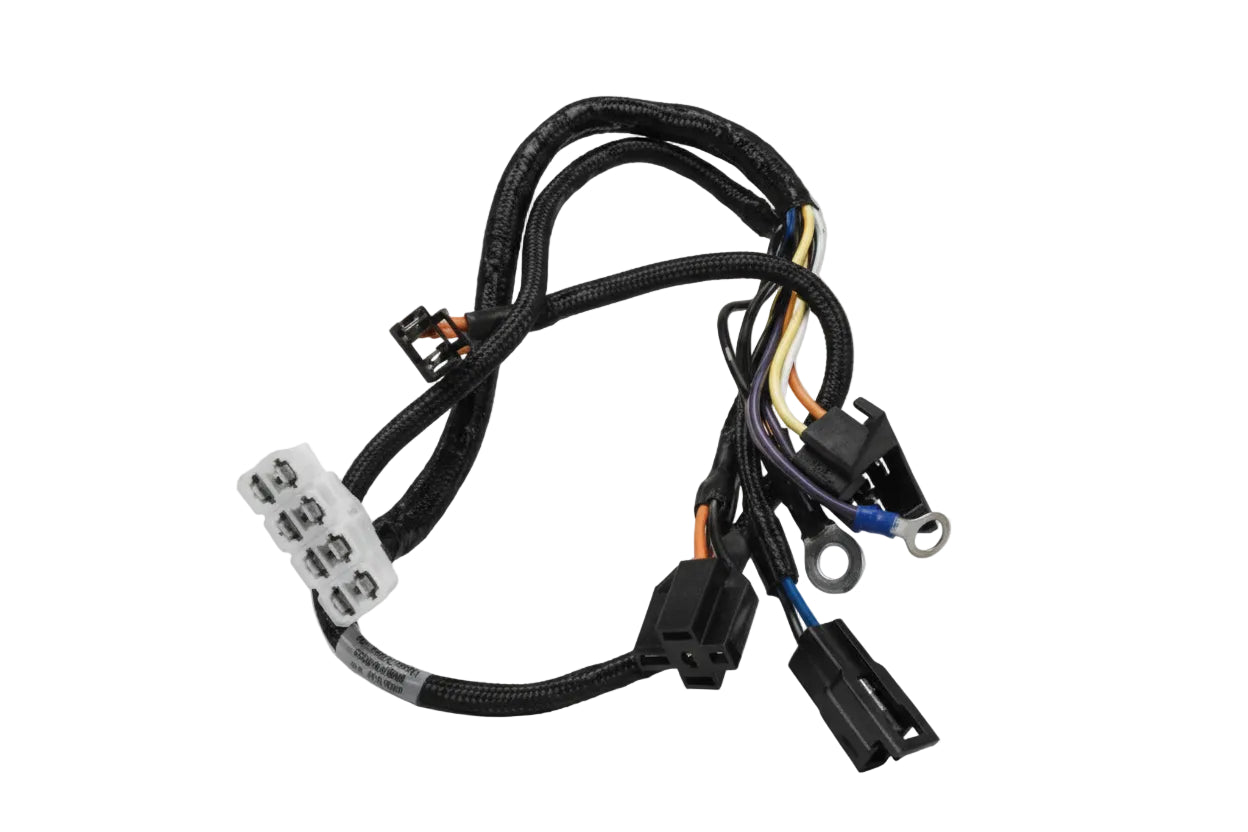

53490005 – Wright Main Electric Wiring Harness Assembly (OEM-Spec)
The Wright 53490005 Main Electric Wiring Harness is a genuine OEM-spec electrical assembly designed to provide the primary power and signal distribution throughout Wright commercial mowing equipment. Engineered to Wright Manufacturing’s exact standards for durability, fit, and electrical reliability, this main harness connects critical systems including ignition, safety interlocks, charging circuits, engine controls, and operator panel components. Built for demanding commercial turf environments, the 53490005 harness ensures consistent electrical performance, organized wiring routing, and long-term operational dependability.
Product Details
Manufacturer Part Number: 53490005
Brand: Wright (OEM-Spec)
Part Type: Main Electric Wiring Harness Assembly
Function: Primary electrical power and control signal distribution
Application: Wright commercial mowers with electric start and control systems
Harness Style: Pre-terminated OEM wiring assembly with integrated connectors
Mounting Location: Main chassis/engine electrical routing path
Construction: Heavy-duty insulated wiring with secure OEM connector ends
OEM Status: Genuine Wright replacement part
Function
Serves as the main electrical backbone of the mower’s wiring system
Distributes power from the battery to ignition, starter, and control circuits
Connects engine controls, safety switches, PTO/blade circuits, and dashboard components
Supports proper function of interlock systems and operational safety features
Reduces electrical failures caused by damaged or improperly repaired wiring
Compatible With
The Wright 53490005 Main Wiring Harness is used on select Wright commercial turf equipment, including:
Wright stand-on and zero-turn mowers with integrated electric control systems
Models requiring OEM main harness part number 53490005
Equipment specified in Wright parts diagrams for complete main electrical harness assemblies
Because wiring harness configurations vary by model and serial number range, always verify compatibility using your mower’s exact model and serial number before ordering.
How It’s Used
This main harness installs along the mower’s chassis and connects multiple electrical subsystems:
Turn off the mower and disconnect the battery before servicing.
Remove necessary covers or panels to access harness routing.
Carefully label and disconnect all harness connectors from components.
Remove clips, ties, or mounting hardware securing the old harness.
Install the Wright 53490005 harness following the factory routing path.
Reconnect all OEM connectors securely, ensuring proper seating and locking.
Secure wiring with clips and protective sheathing as designed.
Reconnect the battery and test ignition, blade engagement, safety systems, and charging operation.
Proper installation is critical for safe mower function and reliable electrical performance.
Suggested Maintenance
Inspect harness routing periodically for rubbing, heat exposure, or pinch points
Check connectors for corrosion, moisture intrusion, or loose engagement
Keep electrical compartments clean and free of debris buildup
Replace harness immediately if wires are frayed, damaged, or causing intermittent faults
Use only OEM-spec Wright harness assemblies for correct fit and long-term reliability
The Wright 53490005 Main Electric Wiring Harness Assembly is a dependable OEM-spec replacement designed to restore complete electrical connectivity, ensure safe system operation, and maintain long-lasting performance on compatible Wright commercial mowing equipment.
