Description

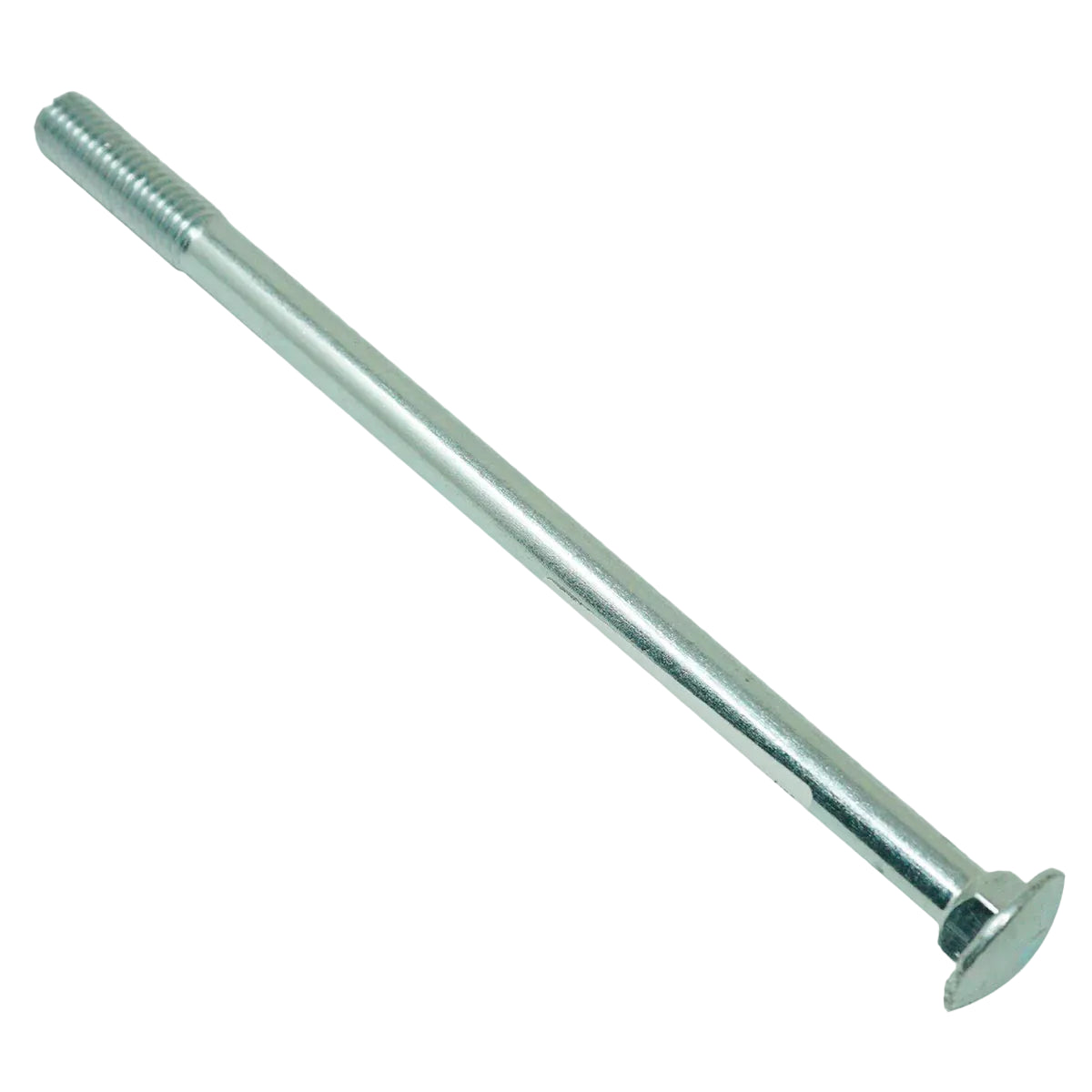

06200436 – Bolt, RHSN .500-13 × 8.50 (Shoulder), Grade 5 (ZCC)
Ariens / Gravely Genuine Part
The 06200436 Bolt is a right-hand standard hex bolt with shoulder (1/2-13 threads, 8.50-inch length), manufactured to Grade 5 specifications and finished with zinc clear chromate (ZCC) for corrosion resistance. This bolt is commonly used in anti-scalp wheel and deck baffle assemblies across a wide range of Ariens and Gravely commercial mower decks.
Built for strength and durability, it provides secure fastening in high-load, high-vibration mower deck applications.
Product Details
-
Genuine Ariens / Gravely part
-
Part Number: 06200436
-
Hex bolt w/ shoulder (RHSN)
-
Thread size: 1/2-13
-
Length: 8.50″ (Shoulder style)
-
Grade: 5
-
Finish: Zinc Clear Chromate (ZCC)
Where Used (Common Applications)
Gravely
-
Anti-Scalp Wheels & Baffles
-
Pro-Turn 148 / 152 / 160 (including EFI variants)
-
Pro-Turn Z / ZX series (48″, 52″, 60″)
-
ZT HD series (44″, 48″, 52″, 60″)
-
Pro-Stance series (48″, 52″, 60″ — including EFI)
-
Pro-Turn EV series (SD/RD models)
-
Ariens
-
Ariens commercial mowers using compatible:
-
Anti-scalp wheel assemblies
-
Deck baffle / deck stop hardware
-
(Always verify model, deck size, and serial number for correct fitment.)
