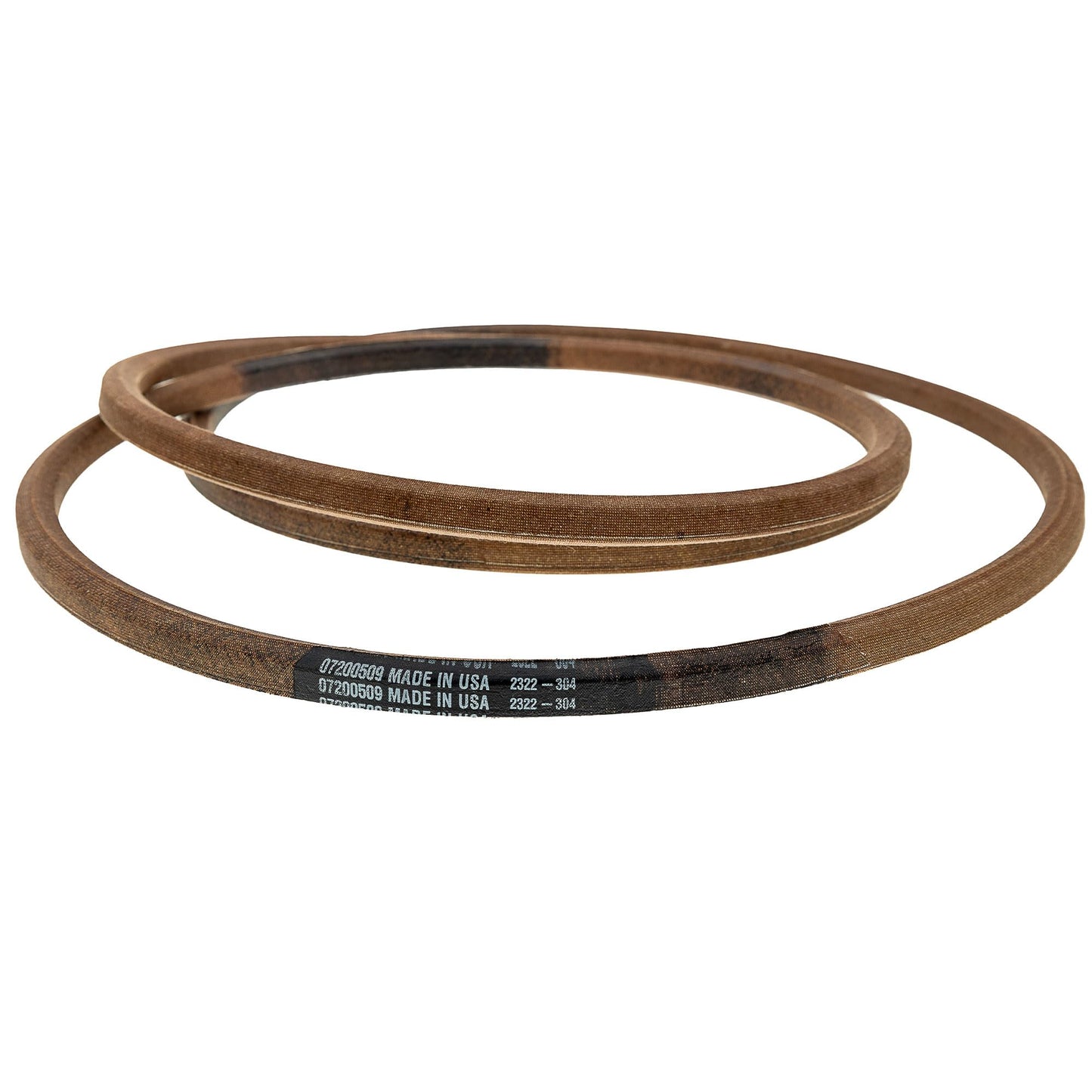

07200509 – Hex Belt BB-Wrapped – OEM Ariens Gravely
The 07200509 BB-Wrapped Hex Belt is a genuine OEM Ariens / Gravely deck drive belt designed for high-load, multi-pulley mower deck systems. Its hexagonal (double-V) profile allows power transfer on both sides of the belt, making it ideal for complex deck routing with multiple idlers and spindles.
This belt is engineered specifically for commercial zero-turn mower decks, delivering consistent blade speed, reduced slippage, and long service life.
Part Details
-
OEM Part Number: 07200509
-
Description: Hex Belt, BB-Wrapped
-
Brand: OEM Ariens / Gravely
-
Belt Type: BB-section hex (double-V), wrapped
-
Application: Mower deck drive belt
-
System: Belts, spindles, idlers, and blades
Function
The 07200509 hex belt transfers engine power through the deck pulley system to drive the mower blades. The BB-wrapped construction provides:
-
Power transfer on both belt sides
-
Smooth operation around multiple idlers
-
Reduced vibration and belt rollover
-
Increased durability in commercial mowing conditions
Where Used (Common Applications)
Used on a wide range of Gravely PM-Series and Pro-Turn zero-turn mowers, including:
PM-Series i & XDZ Models
-
PM148i – 48" Deck (Kawasaki)
-
PM152i – 52" Deck (Kawasaki)
-
PM160i – 60" Deck (Kawasaki)
Pro-Turn Models
-
Pro-Turn 148 – 48" Deck
-
Pro-Turn 152 – 52" Deck
-
Pro-Turn 160 – 60" Deck
-
Pro-Turn 252 / 260 / 266
-
Pro-Turn EFI & CARB variants
-
Pro-Turn CE models
Deck Sizes Covered
-
48"
-
52"
-
60"
-
66"
➡️ All listed machines use this belt in the mower deck drive system (belts, spindles, idlers, and blades).
Common Replacement Symptoms
-
Uneven or weak blade speed
-
Belt slippage or chirping
-
Excessive deck vibration
-
Visible belt cracking or glazing
-
Blade engagement delay
Why Use OEM 07200509
-
Correct BB hex profile and length
-
Designed for complex deck belt routing
-
Handles high spindle and idler loads
-
Longer service life than aftermarket belts
-
Maintains factory deck performance
