Description

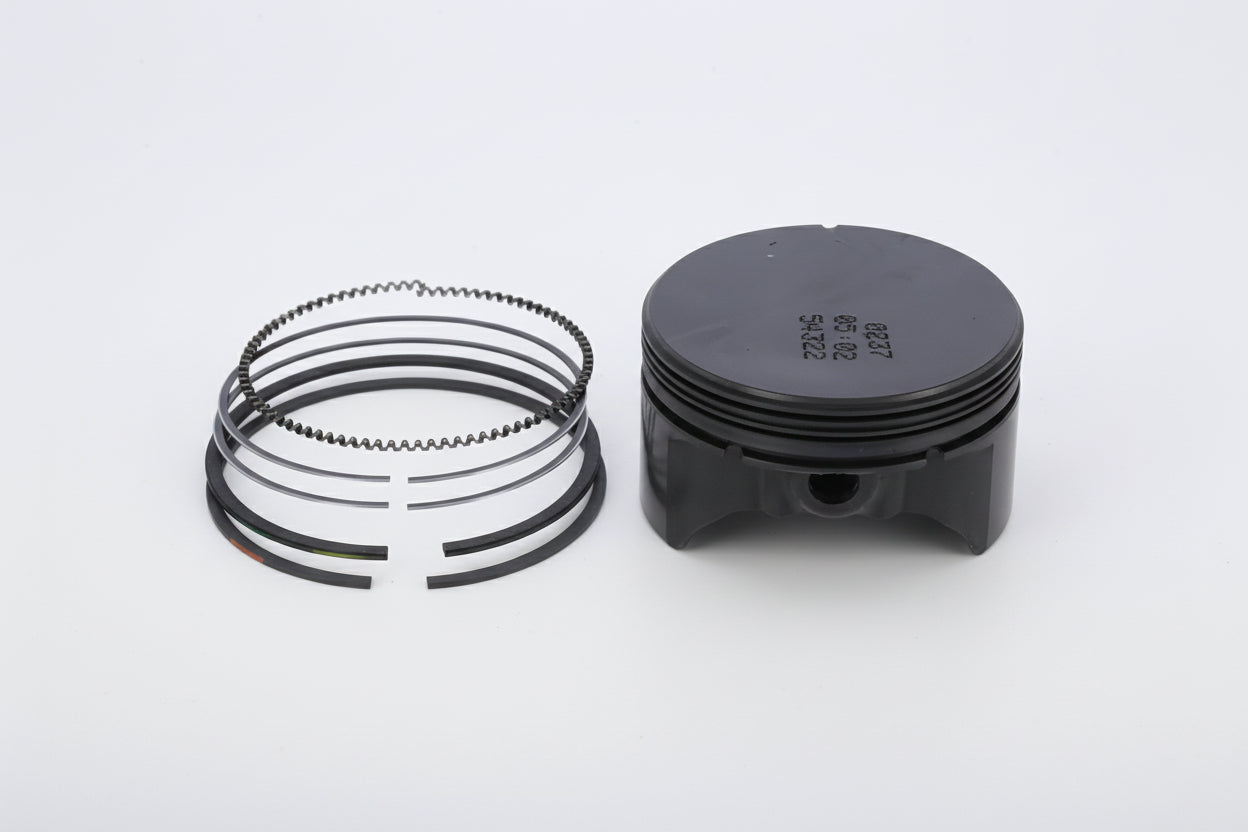

594099 – Briggs & Stratton Piston Assembly (OEM-Spec)
The Briggs & Stratton 594099 Piston Assembly is a genuine OEM replacement engine component designed to restore proper piston function, compression, and combustion efficiency in compatible Briggs & Stratton small engines. Crafted to meet the manufacturer’s strict standards for fit, durability, and performance, this piston assembly ensures reliable engine operation and helps extend service life in lawn mowers and other outdoor power equipment. Ideal for routine engine rebuilds or maintenance, the 594099 assembly delivers the precision and quality expected from Briggs & Stratton OEM parts.
Product Details
Manufacturer Part Number: 594099
Brand: Briggs & Stratton (OEM-Spec)
Part Type: Piston Assembly
Function: Converts combustion energy into mechanical motion and maintains compression
Application: Briggs & Stratton small engines (various models)
Assembly Includes: Piston (may include pin and clips, depending on engine design)
Material: High-strength machined aluminum piston with heat-treated surfaces
OEM Status: Genuine Briggs & Stratton replacement part
Function
-
Forms a tight, moving seal inside the engine cylinder to convert combustion pressure into piston motion
-
Works with rings to maintain compression and regulate combustion gas flow
-
Transfers force to the crankshaft via the connecting rod for power generation
-
Supports efficient fuel combustion and engine performance
-
Helps reduce blow-by and oil consumption when paired with proper ring sealing
Compatible With
The Briggs & Stratton 594099 Piston Assembly fits numerous Briggs & Stratton small engines, particularly models in the 103M02 series such as:
-
103M02-0001-F1, 103M02-0002-F1, 103M02-0003-F1, 103M02-0005-H5, and others in the 103M02 lineup
Always verify compatibility with your specific engine’s model and serial number using the official Briggs & Stratton parts lookup or service manual before ordering.
How It’s Used
Replacing a piston assembly is typically part of an engine rebuild or major overhaul:
-
Prep: Turn off the engine, disconnect the spark plug wire, and drain fluids per the service manual.
-
Disassemble: Remove the engine head, cylinder, and old piston according to manufacturer instructions.
-
Inspect: Check cylinder walls, crankshaft, and connecting rod for wear or damage; bore/hone if necessary.
-
Install New Piston: Fit the new 594099 piston (with pin/clips if included) onto the connecting rod and into the cylinder, ensuring correct orientation.
-
Reassemble Engine: Install head gasket, head, and all components per torque specs.
-
Test: Reconnect spark plug and start the engine to confirm proper compression and performance.
Suggested Maintenance
-
Inspect piston and cylinder during major engine service
-
Check for scoring or wear on piston skirt and ring grooves
-
Replace piston rings and wrist pin clips if worn or damaged
-
Maintain clean air/fuel systems to minimize piston carbon buildup
-
Follow proper break-in procedures after engine overhaul
The Briggs & Stratton 594099 Piston Assembly is a dependable OEM-spec solution engineered to restore piston integrity, maintain compression, and ensure smooth, efficient engine performance in compatible small engines.
