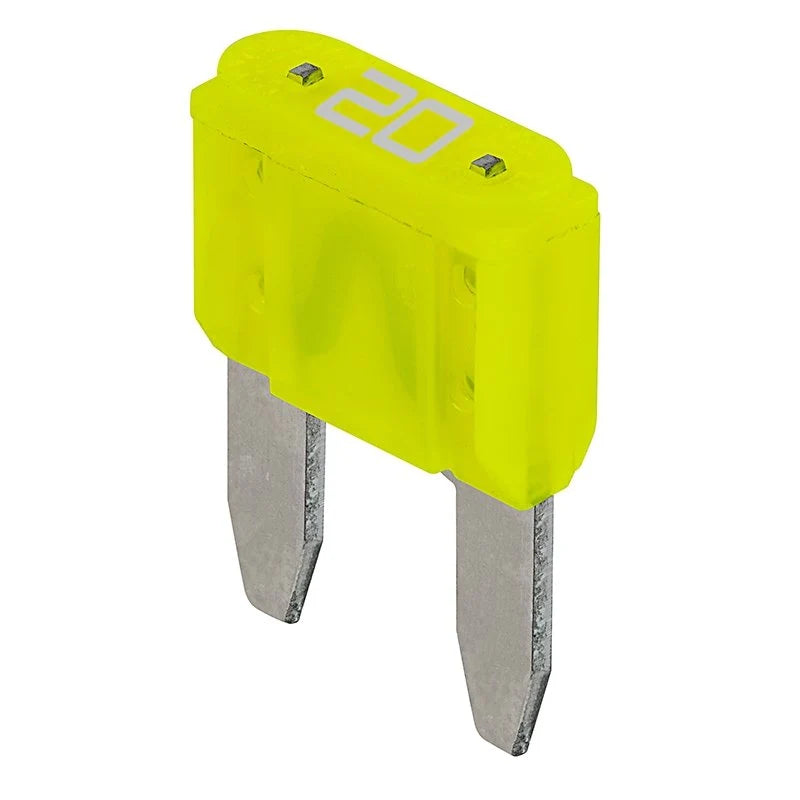

04438300 – Ariens® / Gravely® 20 AMP Mini ATC Fuse (Genuine OEM Part)
The 04438300 20 AMP Mini ATC fuse is a genuine Ariens® / Gravely® electrical protection component used to safeguard vital circuits on a wide range of zero‑turn and commercial mower models. This blade‑style fuse is designed to interrupt the flow of current when it exceeds 20 amps, protecting wiring, switches, relays, and control modules from damage due to short circuits or electrical overloads. As a factory‑specified replacement part, the 04438300 fuse ensures dependable performance and long‑lasting durability under typical mowing conditions.
Mini ATC fuses are commonly found in key electrical systems such as ignition, lighting, safety circuits, accessories, and control harnesses. Installing the proper OEM fuse helps maintain safe operation, prevents nuisance electrical failures, and preserves the integrity of the mower’s electrical system.
Key Details:
-
Brand: Ariens® / Gravely®
-
Manufacturer Part Number: 04438300
-
Part Type: 20 AMP Mini ATC Fuse
-
Function: Protects electrical circuits from overcurrent and shorts
-
Fuse Style: Mini ATC blade
-
Application Area: Electrical system
-
OEM Status: Genuine Ariens / Gravely replacement part
Compatibility:
The 04438300 mini fuse is used in electrical protection applications across many Ariens® mower platforms, including Ikon, Apex, Zenith, Ridgeline, Arrow, and Contractor series. It supports a broad range of decks and engine configurations, making it a common replacement in both residential and professional mowing equipment.
Where Used (Model / Serial Ranges – Electrical System):
-
Ikon Series:
-
918002 – Ikon 42" (000101 – )
-
918003 – Ikon 48" (000101 – )
-
918004 – Ikon 52" (000101 – )
-
918005 – Ikon 52" (000101 – )
-
918006 – Ikon 60" (000101 – )
-
918026 – Ikon Onyx 52" (030000 – )
-
918027 – Ikon 42" Select (030000 – )
-
918028 – Ikon 52" Select (030000 – )
-
918029 – Ikon 42" CARB (135000 – )
-
918030 – Ikon 52" CARB (135000 – )
-
918300 – Ikon 42" (000101 – )
-
918301 – Ikon 52" (000101 – )
-
-
Apex Series:
-
991151 – Apex 60 (000101 – )
-
991153 – Apex 48 (000101 – )
-
991155 – Apex 52 (000101 – )
-
991157 – Apex 60 (000101 – )
-
991159 – Apex 52 (040000 – )
-
991161 – Apex 48 (040000 – )
-
991163 – Apex 60 (040000 – )
-
991173 – Apex 48 CARB (000101 – )
-
991175 – Apex 52 CARB (000101 – )
-
991177 – Apex 60 CARB (000101 – )
-
991296 – Apex 48 (095000 – )
-
-
Zenith Series:
-
991158 – Zenith 60 (040000 – )
-
991314 – Zenith 60 CE (030000 – )
-
991320, 991321, 991322, 991323 – Zenith CE 52" & 60" (Various)
-
-
Apex CE Series:
-
991311 – Apex 48 CE (000101 – )
-
991312 – Apex 52 CE (000101 – )
-
991315 – Apex 52 CE (A0371200 – )
-
991316 – Apex 48 CE (A0371200 – )
-
991317 – Apex 48 RD CE (A0389800 – )
-
-
Apex SD / RD CE Series:
-
991324, 991325, 991326, 991327 – Apex SD/RD CE 48 & 52 (000101 – )
-
991590 – Apex 60 Limited (095000 – )
-
-
Ridgeline Series:
-
994166 – Ridgeline 32" (200000 – )
-
994167 – Ridgeline 48" FS 651V (200000 – )
-
994168 – Ridgeline 52" FS 651V (200000 – )
-
-
Arrow Series:
-
994302 – Arrow 32" (000101 +)
-
994303 – Arrow 36" (000101 +)
-
-
Contractor Series:
-
996126 – 2WD Contractor, Subaru EH65 (000101 – )
-
996148 – 4WD Contractor, Subaru EH65 (000101 – )
-
