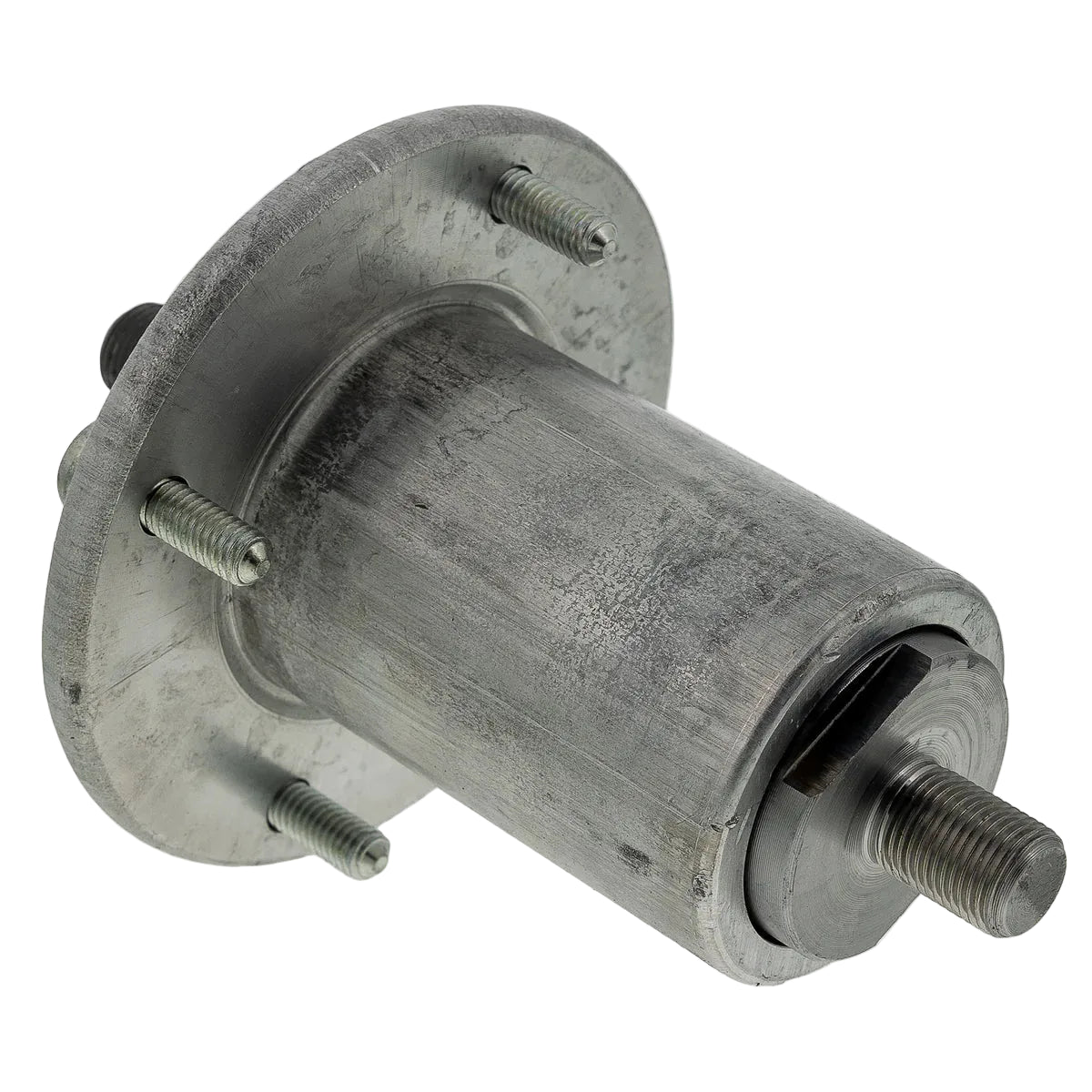

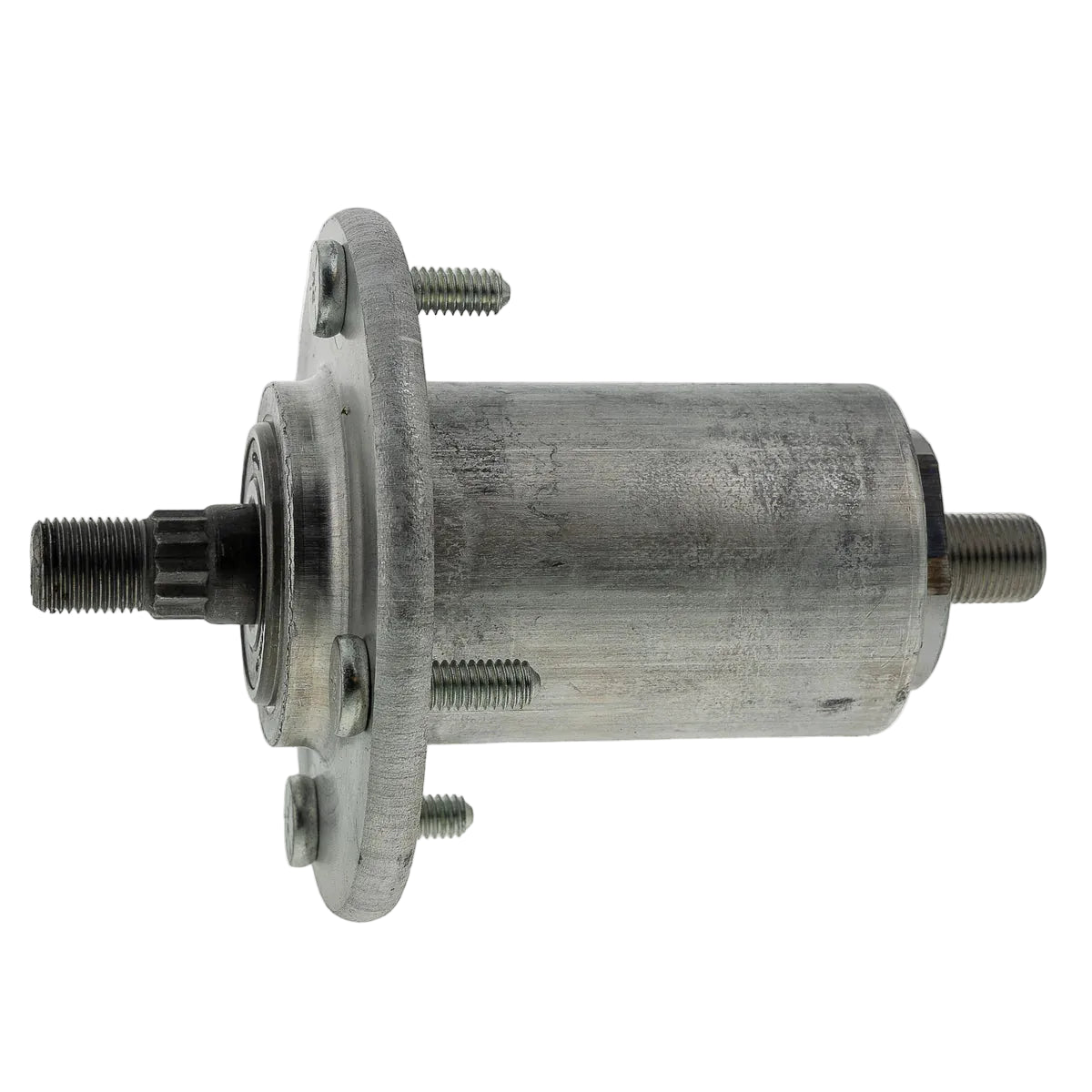

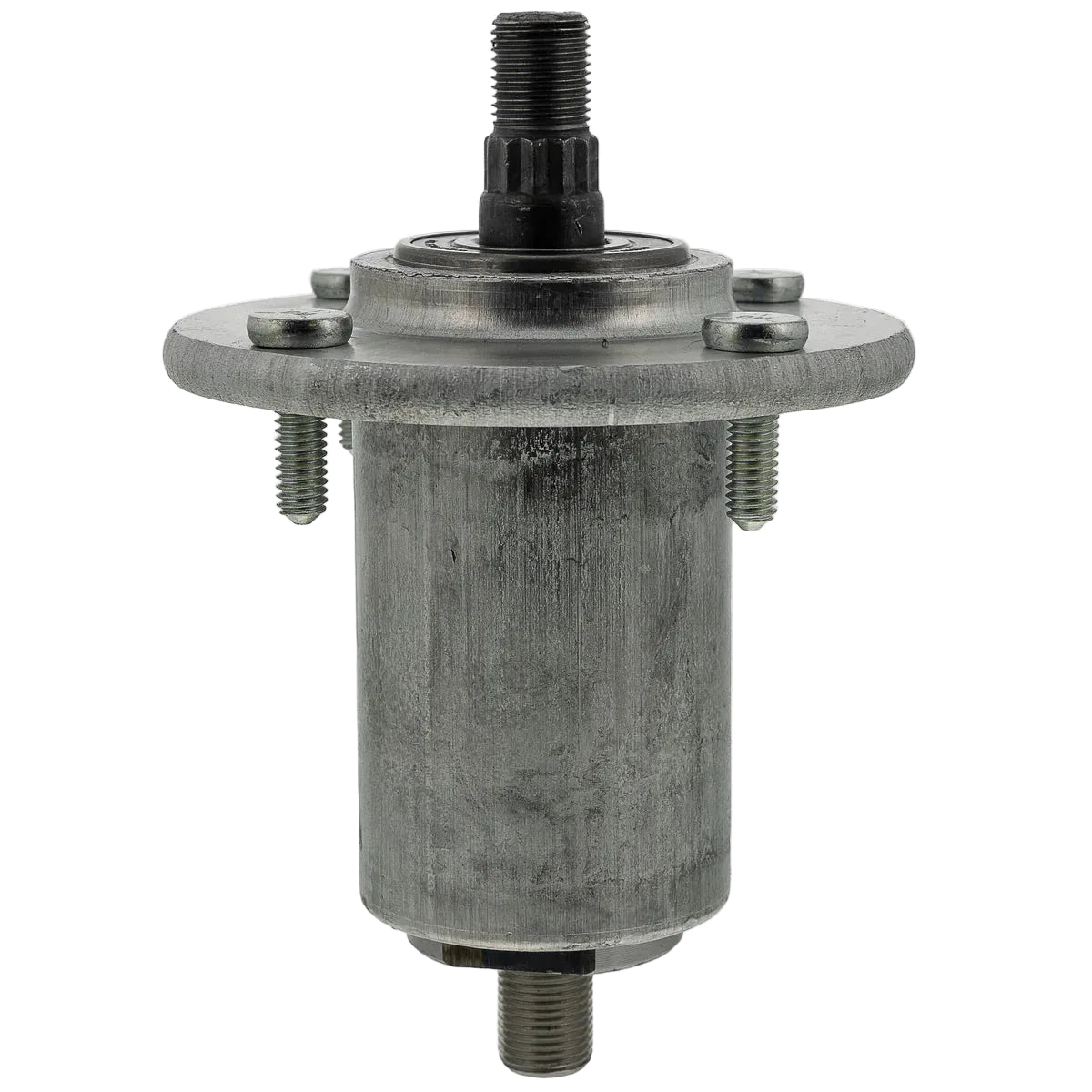

30138800 Spindle Assembly – Ariens / Gravely Genuine OEM Aluminum Spindle Sub
The Ariens / Gravely 30138800 Aluminum Spindle Assembly is a genuine OEM replacement spindle sub-assembly designed for zero-turn mower cutting decks. This heavy-duty aluminum spindle supports smooth blade rotation, proper belt engagement, and reliable cutting performance.
Commonly used on Ariens and Gravely ZT X and ZT XL series mowers, this spindle assembly is an essential replacement part for worn, noisy, or damaged deck spindle systems.
Product Details
-
Part Number: 30138800
-
Brand: Ariens / Gravely
-
Part Type: Aluminum Spindle Assembly (Spindle Sub)
-
Application: Mower Deck Spindle
-
OEM Status: Genuine Ariens / Gravely OEM Replacement Part
-
Condition: New
Function
The Ariens / Gravely 30138800 spindle assembly is designed to:
-
Support mower blade rotation on the cutting deck
-
Maintain smooth, consistent cutting performance
-
Reduce vibration and improve deck reliability
-
Replace worn or damaged spindle housings and bearings
Compatibility
This spindle assembly fits Ariens / Gravely zero-turn mower decks, including:
Ariens ZT X Series
-
ZT X 42" (Models 918007, 918008)
-
ZT X 48" (Model 918009)
-
ZT X 52" (Models 918010, 918011)
Ariens ZT XL Series
-
ZT XL 42" (Model 918012)
-
ZT XL 48" (Model 918013)
-
ZT XL 52" (Models 918014, 918015)
-
ZT XL 60" (Model 918016)
Used in deck sections such as:
-
Deck, Belts, Blades and Spindles
-
Deck, Belt, Baffles, Blades and Spindles
-
Quick Reference Service Parts
⚠️ Always confirm your mower model and deck size before ordering to ensure correct fitment.
Installation / Usage
-
Remove the mower deck and disconnect the belt
-
Remove the damaged spindle assembly
-
Install the new 30138800 spindle sub-assembly
-
Reinstall the blade, belt, and deck components
-
Check proper belt tension and blade alignment before operation
Maintenance Tips
-
Inspect spindles regularly for noise or vibration
-
Keep the deck clean to prevent premature bearing wear
-
Replace spindle assemblies if blades wobble or cut unevenly
-
Torque mounting hardware to manufacturer specifications
