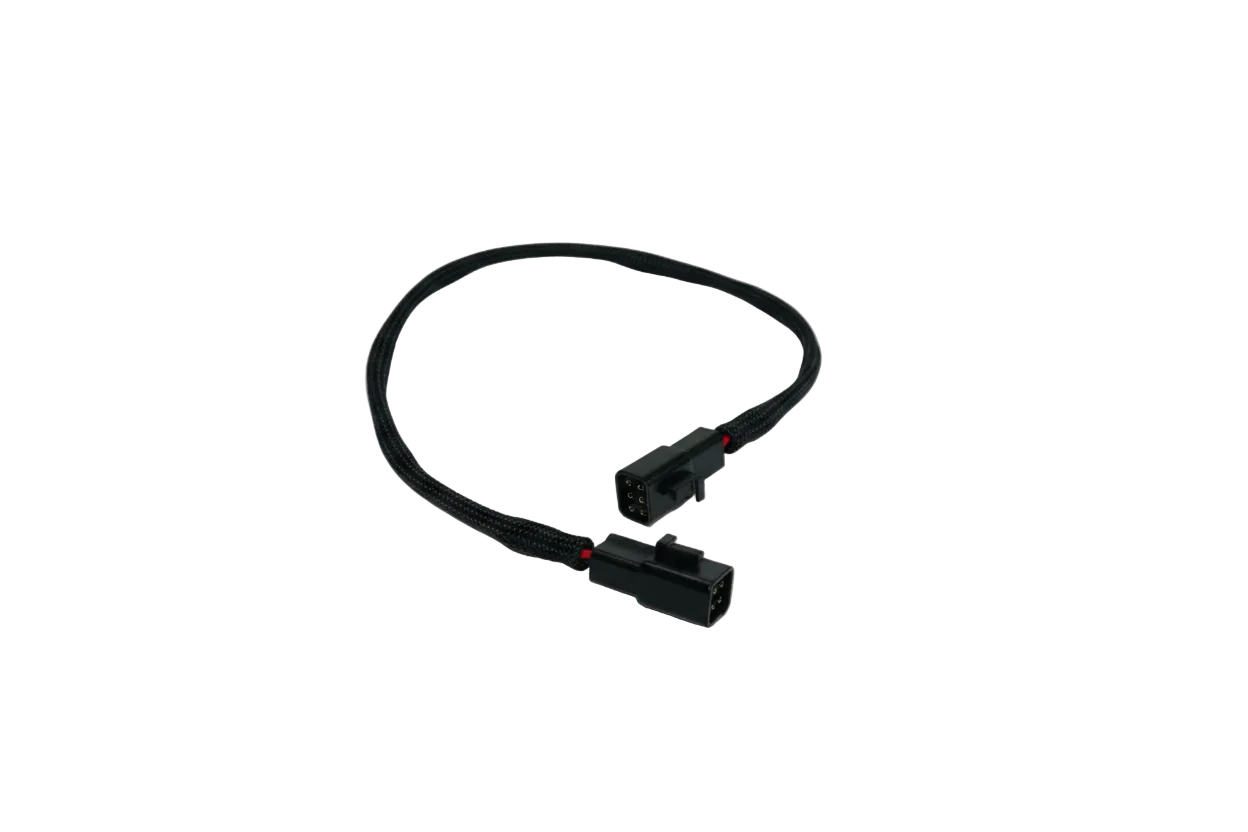

53490054 – Wright 17" Pigtail Extension Harness (OEM-Spec)
The Wright 53490054 Pigtail Extension Harness (17") is a genuine OEM-spec wiring extension designed to provide secure electrical connectivity and added reach within the wiring systems of Wright commercial mowing equipment. Engineered to Wright Manufacturing’s exact specifications, this harness extension supports proper routing of electrical circuits where additional length or flexible connection is required. Built with durable insulated wiring and OEM-style connectors, the 53490054 pigtail harness ensures reliable signal transmission, clean installation, and long-term performance in demanding turf environments.
Product Details
Manufacturer Part Number: 53490054
Brand: Wright (OEM-Spec)
Part Type: Pigtail Extension Harness
Length: 17 inches
Function: Electrical extension and connector pigtail for harness routing
Application: Wright commercial mower electrical systems
Harness Style: Pre-terminated OEM extension with factory connectors
Mounting Location: Inline extension within main or accessory wiring circuits
Construction: Heavy-duty insulated wiring with secure connector ends
OEM Status: Genuine Wright replacement part
Function
Extends wiring reach between electrical components and main harness connections
Provides a reliable plug-in connector interface for easier servicing
Supports proper routing of circuits without strain or stretching wires
Helps maintain clean, organized electrical layout in the mower chassis
Reduces risk of electrical faults caused by improper splicing or damaged wiring
Compatible With
The Wright 53490054 17" Pigtail Extension Harness is used on select Wright commercial turf equipment, including:
Wright stand-on and zero-turn mowers requiring inline harness extensions
Models specified in Wright parts diagrams listing part number 53490054
Electrical systems needing OEM pigtail extensions for proper connector placement
Because harness extensions may vary by model and serial number range, always verify compatibility using your mower’s model and serial number before ordering.
How It’s Used
This pigtail extension harness installs inline between existing wiring connectors:
Turn off the mower and disconnect the battery before servicing.
Locate the wiring connection point requiring extension or replacement.
Disconnect the original connector carefully.
Install the Wright 53490054 harness between the mating connectors.
Ensure connectors lock securely into place.
Route the extension safely away from heat, moving parts, or pinch points.
Reconnect the battery and test the connected electrical function.
Proper installation ensures safe, reliable electrical connectivity.
Suggested Maintenance
Inspect harness routing periodically for abrasion or wear points
Check connectors for moisture intrusion, corrosion, or looseness
Secure wiring with clips or ties to prevent vibration damage
Replace harness extensions if insulation becomes cracked or wires are damaged
Use only OEM-spec Wright harness components for correct fit and dependable performance
The Wright 53490054 17" Pigtail Extension Harness is a dependable OEM-spec replacement designed to restore proper wiring reach, ensure secure electrical connections, and maintain long-lasting performance on compatible Wright commercial mowing equipment.
