Description

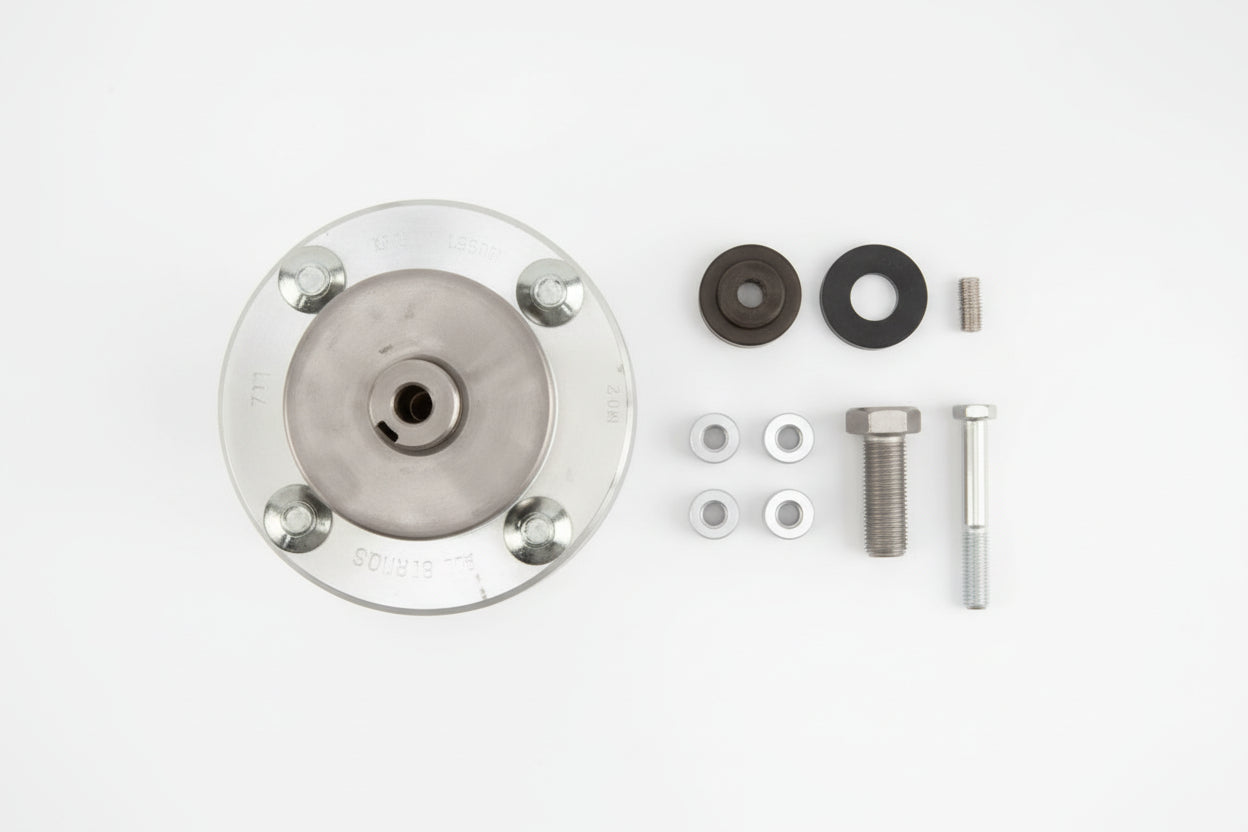

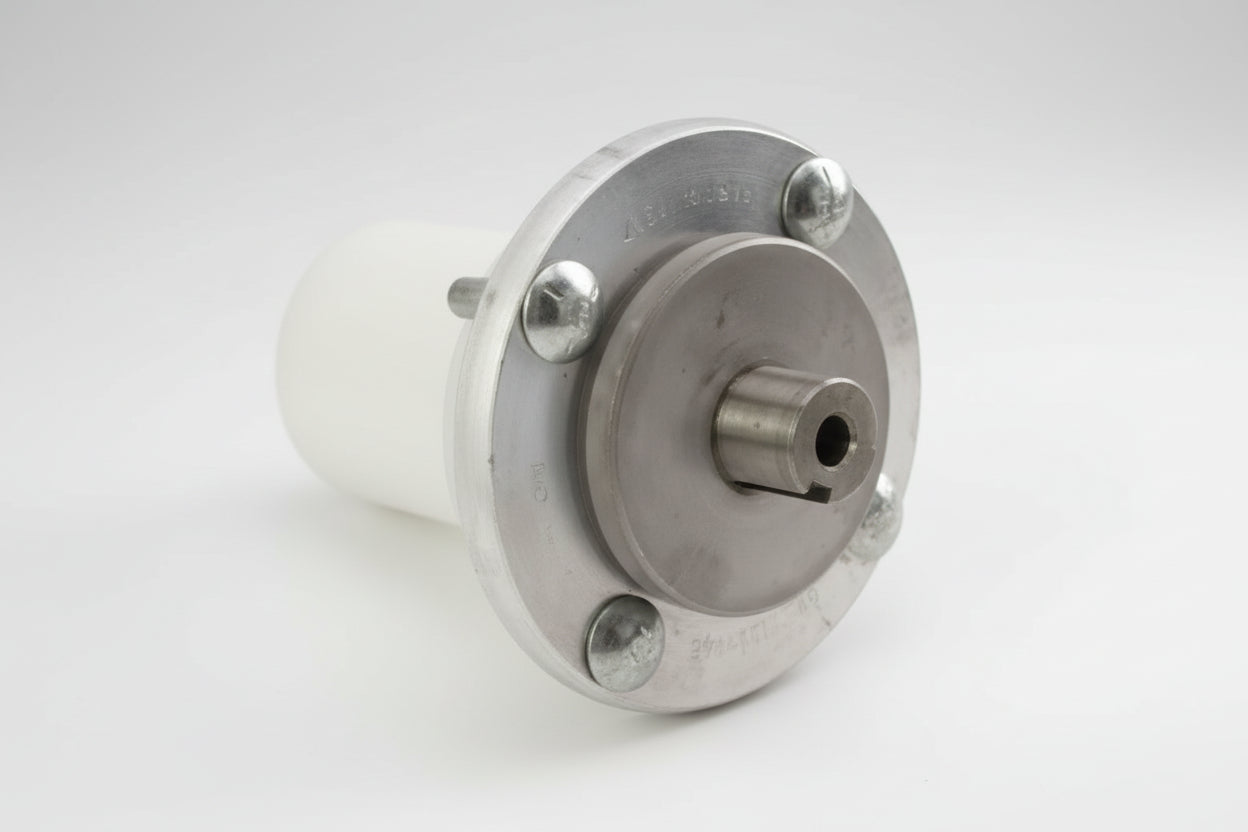

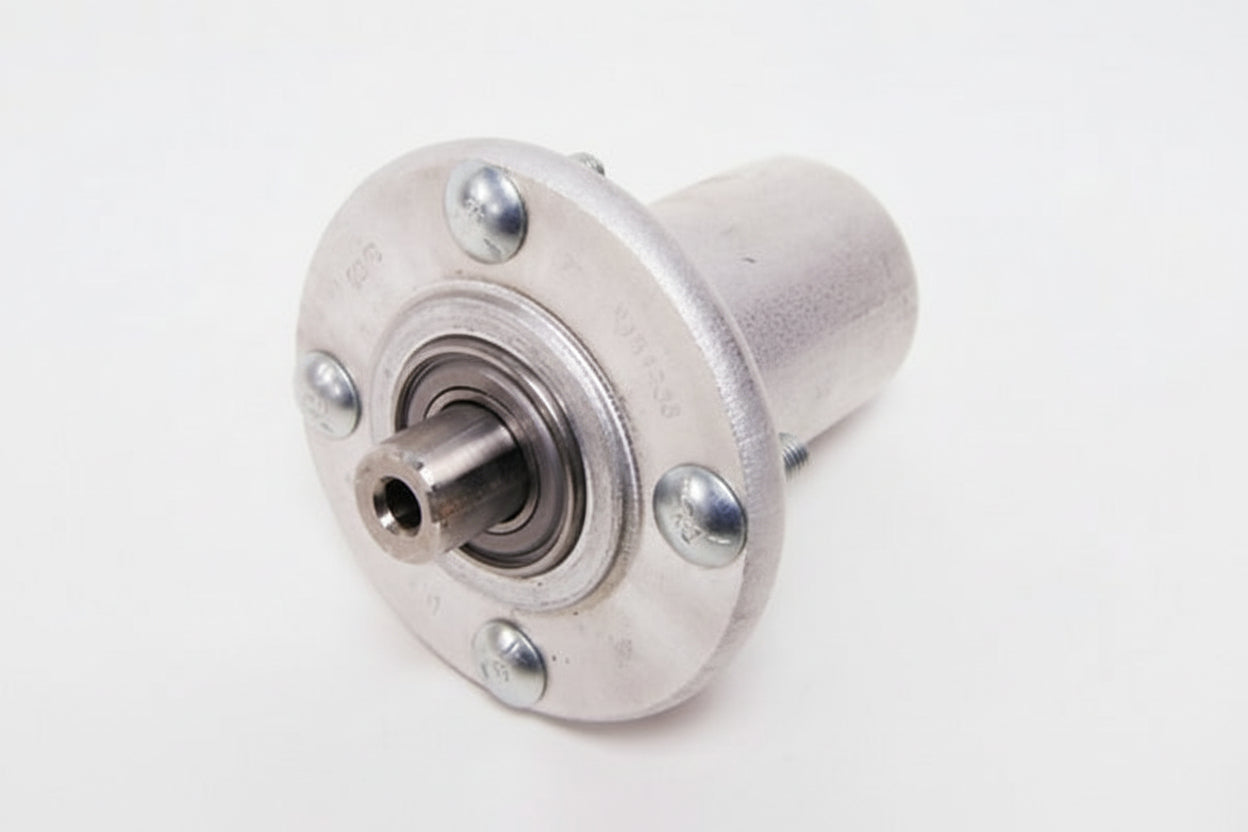

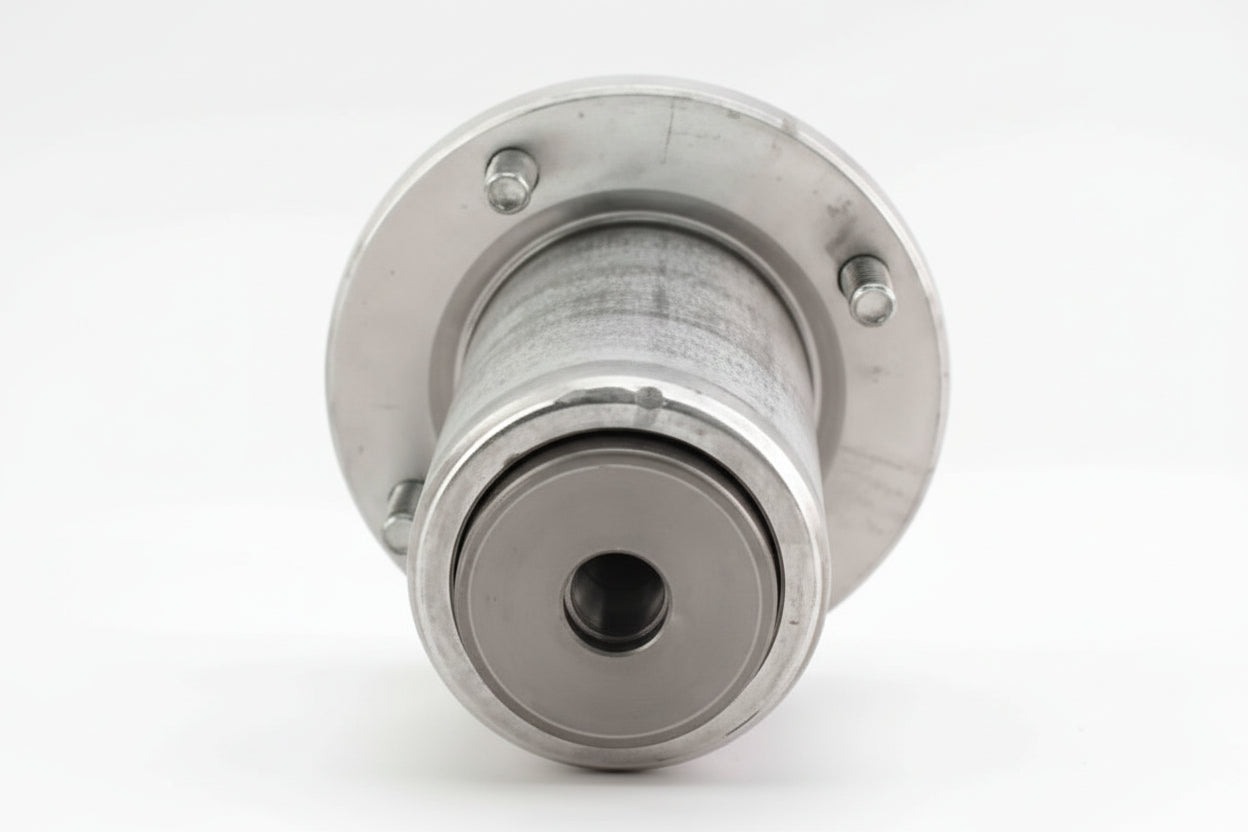

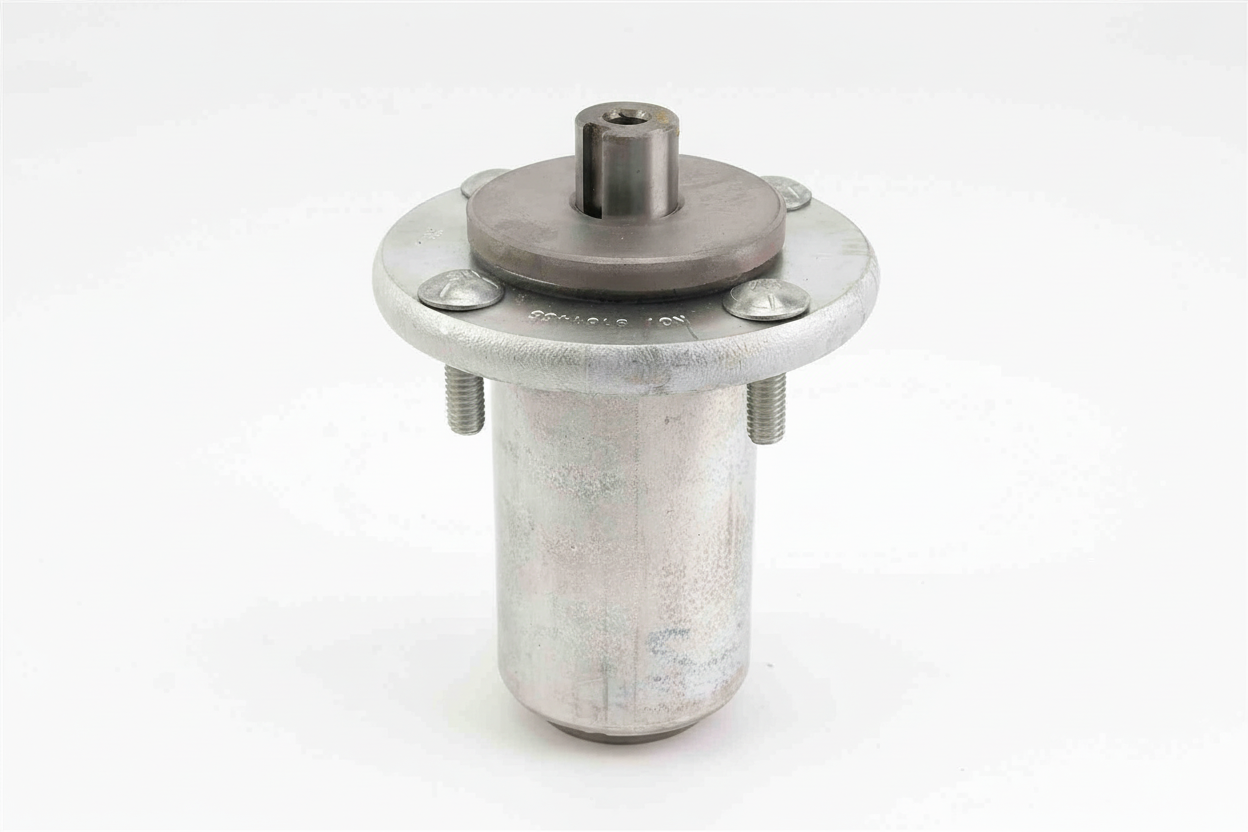

59114000 ASM – Aluminum Spindle (Short) — Gravely OEM Replacement Part
The 59114000 ASM Aluminum Spindle (Short) is a genuine Gravely OEM replacement spindle assembly designed for commercial and residential lawn mowers. Made from durable aluminum, this short spindle assembly provides reliable performance and long service life for cutting deck rotation and support. Built to OEM specifications, it ensures proper fit, smooth operation, and consistent blade engagement for your Gravely equipment.
Product Details
-
Item Number: 59114000
-
Brand: Gravely / Ariens Co. OEM
-
Part Type: Spindle Assembly — Short (Aluminum)
-
Material: Heavy-Duty Aluminum
-
Position: Short Spindle for Mower Deck
-
Condition: New Genuine OEM Replacement Part
-
Intended Use: Spindle rotation assembly for mower deck blades
Function
This aluminum spindle assembly is designed to:
-
Support and rotate mower deck blades smoothly
-
Provide a structural mount for blade engagement
-
Maintain precise cutting deck stability
-
Withstand commercial-grade mowing conditions
-
Replace worn, bent, or damaged spindle assemblies
Compatibility
Fits Gravely zero-turn and lawn mower models that use the short aluminum spindle configuration, including but not limited to:
-
Gravely Pro-Turn Series
-
Gravely ZT Series
-
Other Ariens-platform mowers requiring a short aluminum spindle
⚠️ Always verify compatibility with your mower’s model and serial number before ordering.
Installation / Usage
-
Raise and secure the mower safely on a flat work surface
-
Remove the mower deck and related belt components
-
Detach the old spindle assembly from the deck
-
Install the new 59114000 aluminum spindle in the correct position
-
Reassemble the belt, deck, and safety components per manufacturer instructions
-
Test blade rotation before mowing
Suggested Maintenance
-
Regularly inspect for blade vibration or wobble
-
Check spindle bearings for wear or play
-
Keep spindle housing clean and free of debris
-
Replace seals and bearings if performance drops
-
Tighten mounting bolts to specified torque
-
Store mowers clean and dry to reduce corrosion
Notes / Equivalent References
-
Genuine Gravely OEM 59114000 is recommended for exact fitment — aftermarket spindles may vary in quality and fit.
