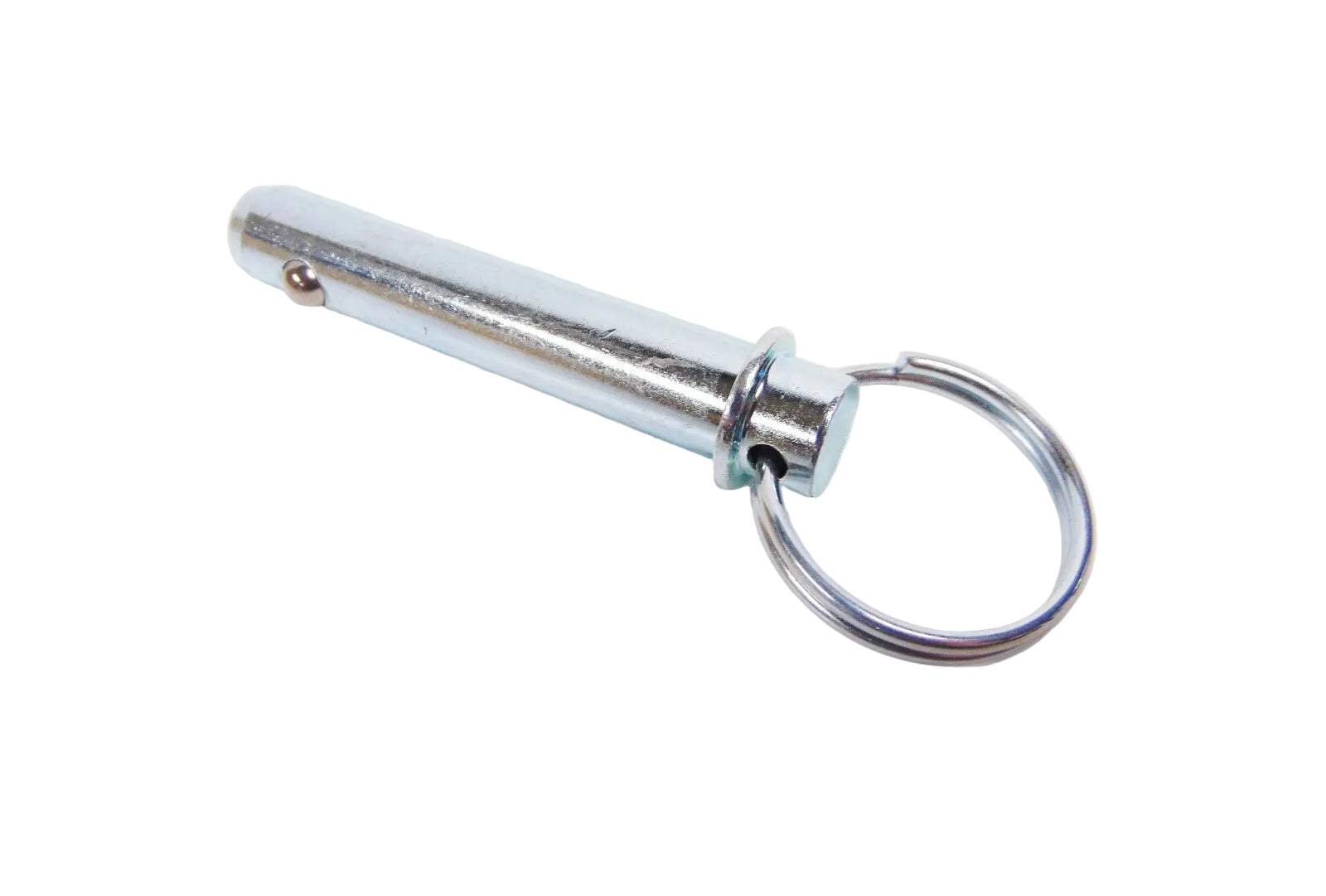

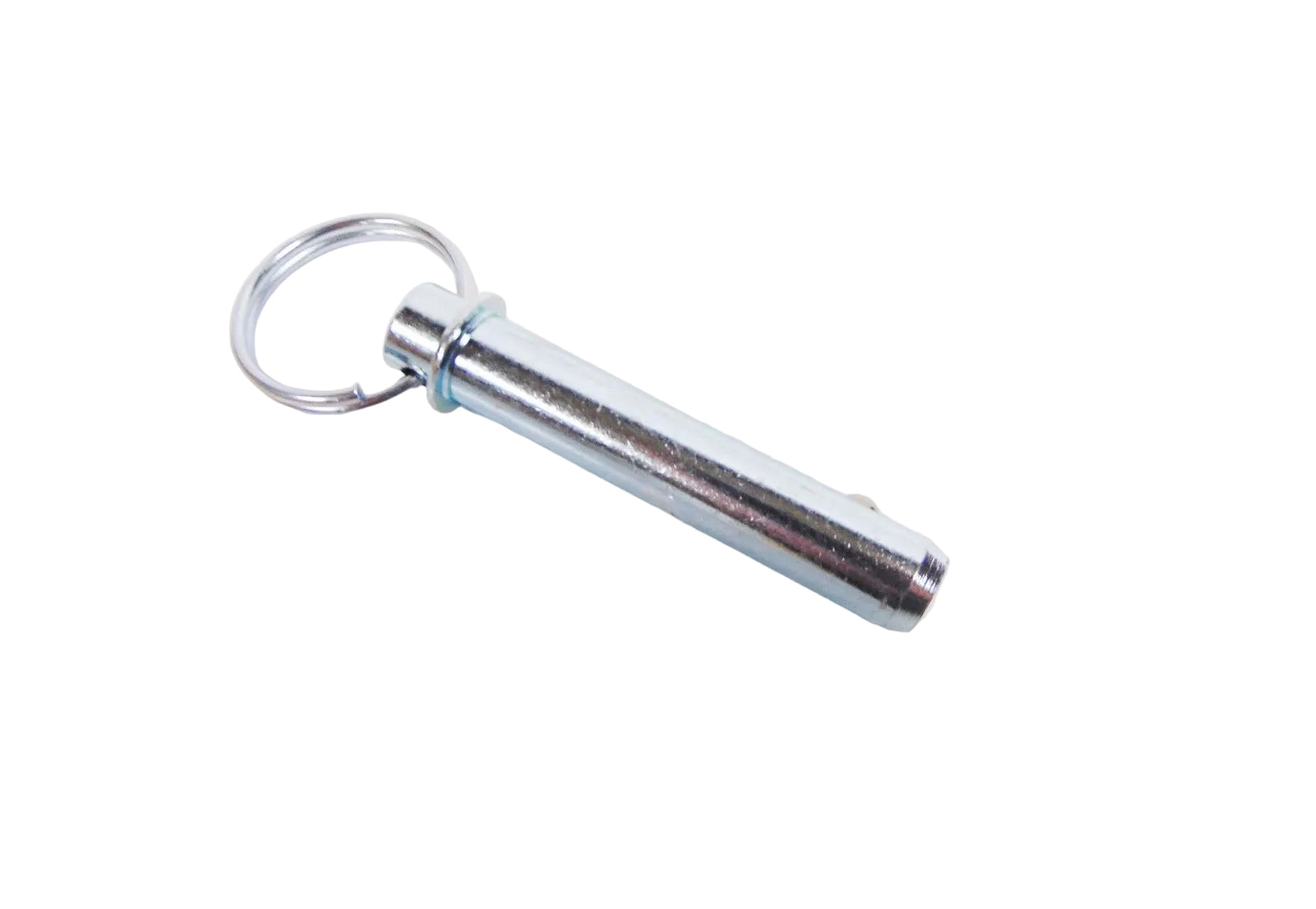

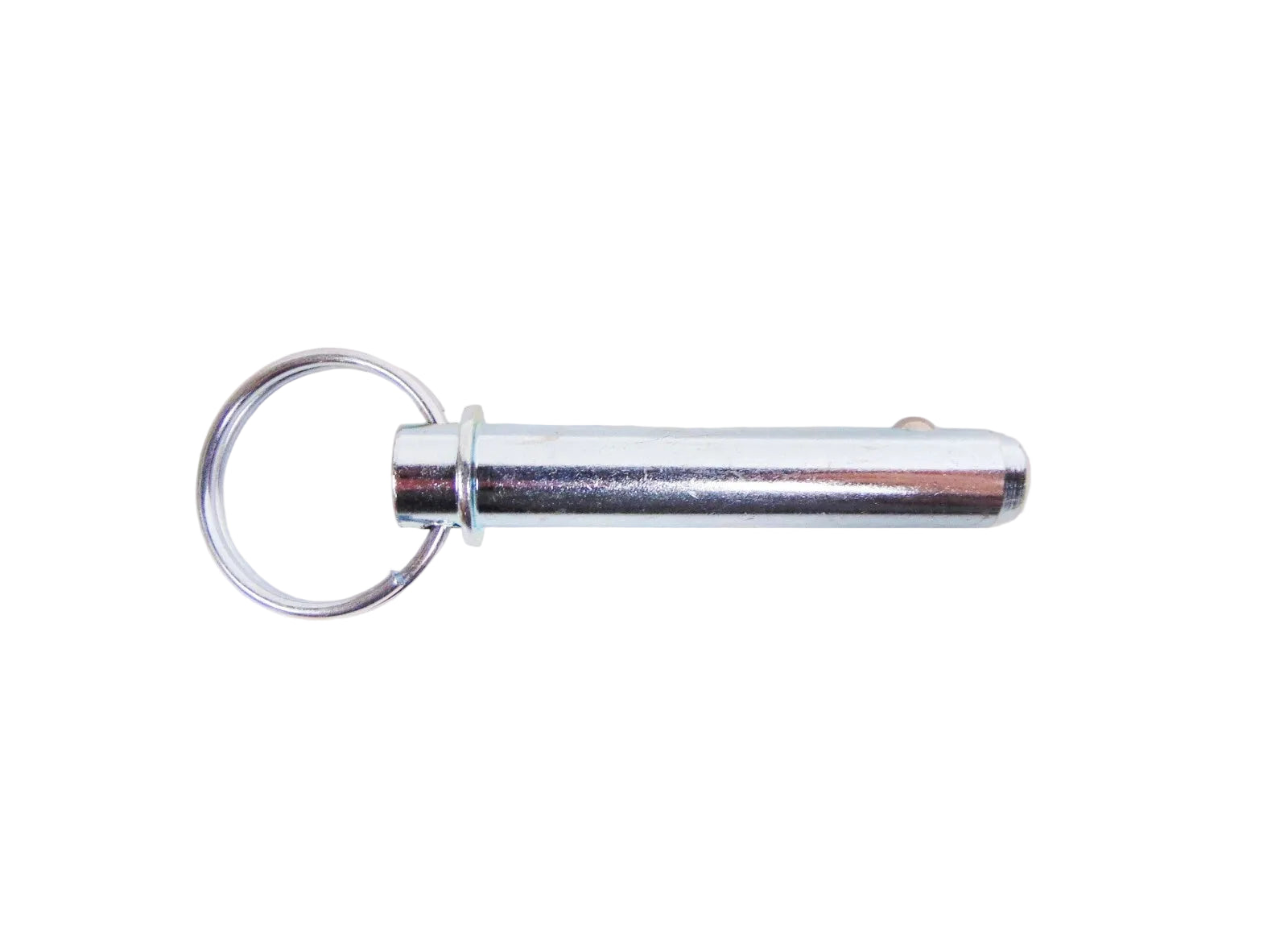

04822400 – PIN, .50″ × 2.00″ USABLE LG BALL (Genuine OEM Ariens / Gravely Part)
The 04822400 PIN, .50 X 2.00 USABLE LG BALL is a genuine OEM Ariens / Gravely ball-lock style pin engineered for secure, quick engagement in mower deck lift and linkage assemblies. Designed with a 0.50-inch diameter and 2.00-inch usable length, this heavy-duty pin provides dependable retention while allowing fast removal and installation during service or adjustment of deck lift components.
Manufactured to Ariens and Gravely factory specifications, the 04822400 pin offers precise fitment, strong holding power, and reliable performance in commercial mowing environments where deck lift mechanisms are frequently adjusted and subjected to vibration.
Key Details
-
Manufacturer Part Number: 04822400
-
Part Name: Pin, .50 × 2.00 Usable LG Ball
-
Brand: Ariens / Gravely
-
Part Type: Ball-Lock / Ball Detent Retaining Pin
-
Diameter: 0.50 inch
-
Usable Length: 2.00 inches
-
Function: Secures deck lift linkages and pivot points while allowing quick release
-
Construction: OEM-grade hardened steel for strength and wear resistance
-
Installation: Direct OEM replacement for compatible deck lift assemblies
Compatibility
The Ariens / Gravely 04822400 ball-lock pin is widely used in Right-Hand (RH) deck lift and mechanical deck lift assemblies across many commercial and residential mower platforms.
Common compatible series include:
Gravely Pro-Turn Series (Mechanical Deck Lift – Right Hand)
-
Pro-Turn 148
-
Pro-Turn 152
-
Pro-Turn 160
-
CARB and non-CARB variants, multiple production ranges
Gravely ZT HD Series (Deck Lift – Right Hand)
-
ZT HD 44 / 48 / 52 / 60
-
CARB and non-CARB variants, multiple serial number breaks
Additional Gravely Commercial Platforms
-
Pro-Turn Z / ZX and related deck lift configurations where listed in RH deck lift assemblies
-
CE variants and multiple updated production ranges
This pin is referenced across extensive serial number ranges and appears in multiple “Deck Lift – Right Hand” and “Mechanical Deck Lift – Right Hand” assemblies, indicating broad usage in Ariens/Gravely deck lift linkage systems.
The 04822400 PIN, .50 × 2.00 USABLE LG BALL provides OEM fit, secure retention, and fast serviceability—ideal for maintaining proper deck lift operation on Ariens and Gravely commercial mower platforms.
