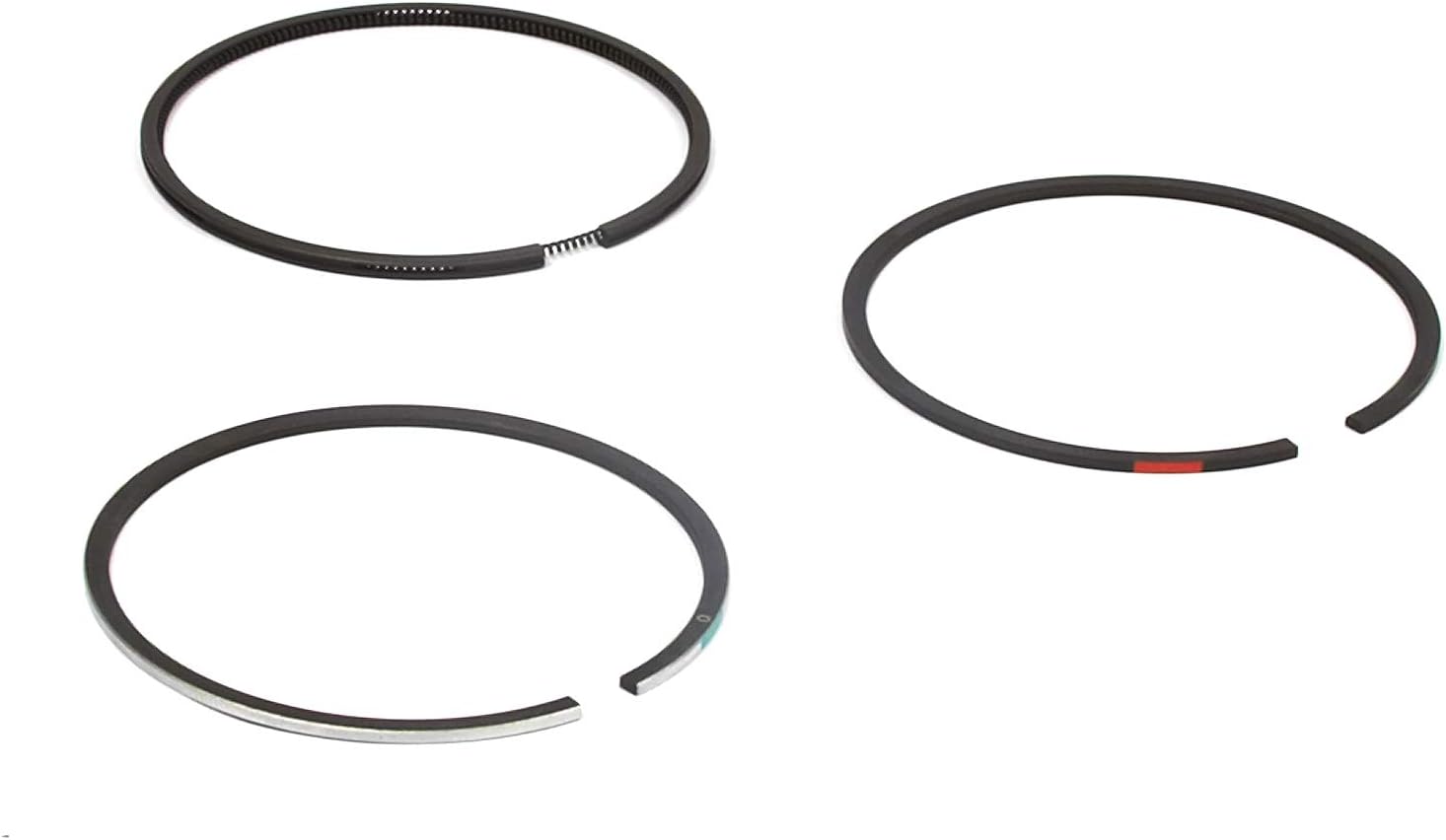

594098 – Briggs & Stratton Piston Ring Set (OEM-Spec)
The Briggs & Stratton 594098 Ring Set is a genuine OEM replacement piston ring kit engineered to restore optimal engine compression, reduce blow-by, and regulate oil control in compatible Briggs & Stratton small engines. Designed to meet the manufacturer’s exact performance and durability standards, this ring set helps ensure efficient combustion sealing and consistent power delivery in gasoline engines. Ideal for both maintenance and rebuild applications, the 594098 ring set supports long engine life and reliable operation.
Product Details
Manufacturer Part Number: 594098
Brand: Briggs & Stratton (OEM-Spec)
Part Type: Piston Ring Set
Function: Seals combustion chamber, controls oil consumption, restores compression
Application: Briggs & Stratton small engines (various models)
Ring Count: Complete set for one piston (rings typically include compression and oil control rings)
Material: High-strength wear-resistant metal alloy
OEM Status: Genuine Briggs & Stratton replacement part
Function
Provides a reliable seal between the piston and cylinder wall to maintain optimal combustion pressure
Helps prevent combustion gases from escaping past the piston (reducing blow-by)
Scrapes excess oil from cylinder walls to regulate lubrication and prevent oil burning
Enhances engine efficiency, performance, and fuel economy
Reduces oil consumption and extends engine life under normal operating conditions
Compatible With
The Briggs & Stratton 594098 Ring Set fits a wide range of Briggs & Stratton small engines, especially those in the 103M02, 103M05, 103M0B, 104M02, 104M05, and 104M0B series. Specific engine models include many variations of the 103M02 vertical shaft engines and others listed in OEM parts diagrams that reference part number 594098.
Always verify compatibility with your engine’s exact model and serial number using the official Briggs & Stratton parts lookup before ordering.
How It’s Used
Installing the piston ring set is typically part of an engine rebuild or major service:
Prepare Engine: Shut off engine, disconnect spark plug, and remove engine head and cylinder assembly per manufacturer service manual.
Remove Old Rings: Carefully remove old piston rings from the piston using proper tools to avoid scratching or damaging the piston.
Check Cylinder: Inspect cylinder walls for wear, scoring, or damage; hone or replace the cylinder if required.
Install New Rings: Fit the new rings from the 594098 set onto the piston in their correct orientation and position (follow ring gap placement and order instructions).
Reassemble Engine: Reinstall the piston into the cylinder and reassemble engine components using correct torque specifications.
Test Operation: Run the engine to confirm proper compression, smooth operation, and no oil burning.
Proper installation by a qualified technician ensures reliable compression and optimal engine performance.
Suggested Maintenance
Inspect rings and cylinder walls during major engine service or if compression loss is suspected
Use correct ring gap and orientation according to the service manual
Clean piston grooves thoroughly before installing new rings
Replace associated gaskets and seals when performing ring service
Monitor engine performance (smoke, power loss) as indicators for ring wear
The Briggs & Stratton 594098 Piston Ring Set is a high-quality OEM replacement designed to deliver dependable sealing, improved compression, and controlled oil consumption—critical for maintaining peak performance and longevity in compatible Briggs & Stratton small engines.
