Description

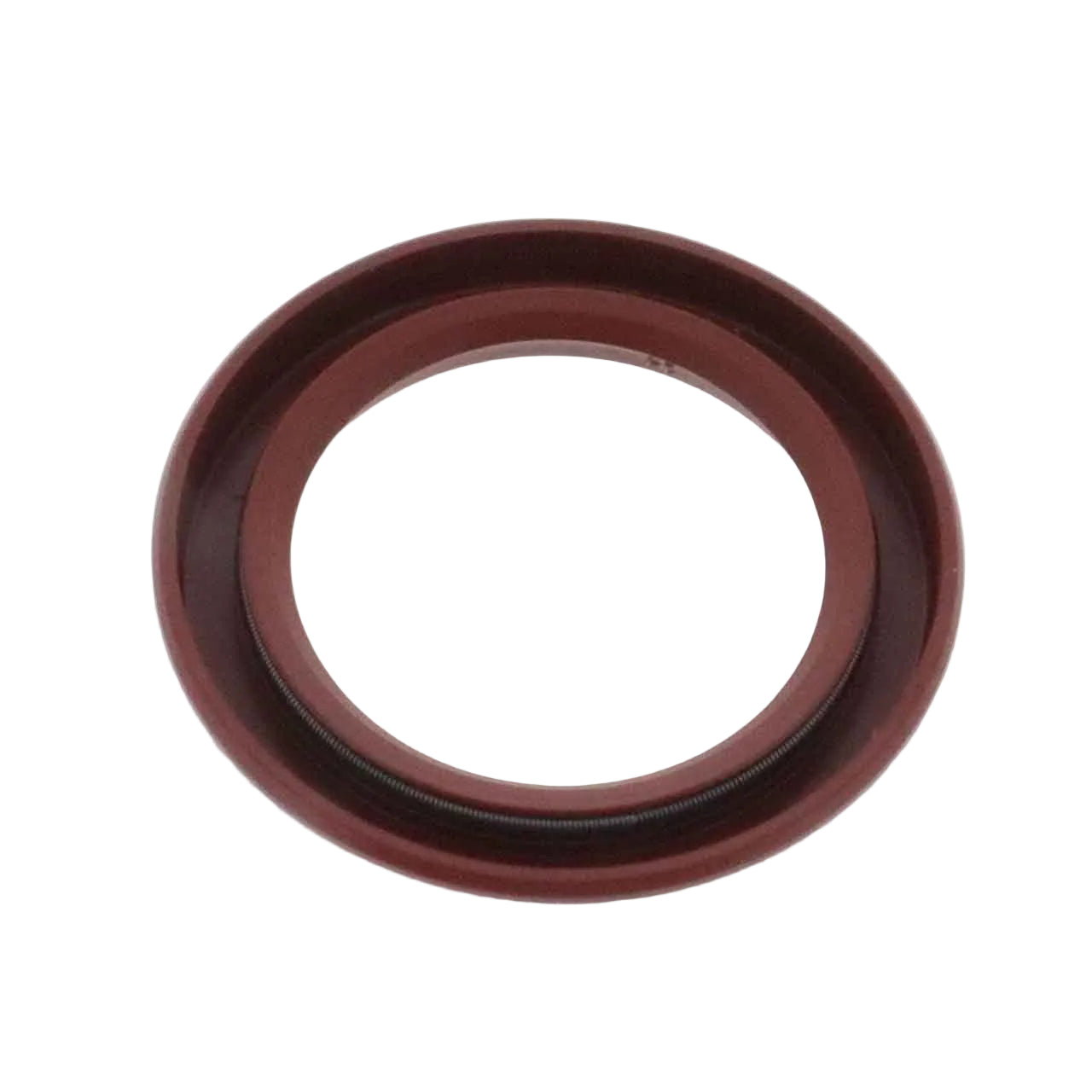

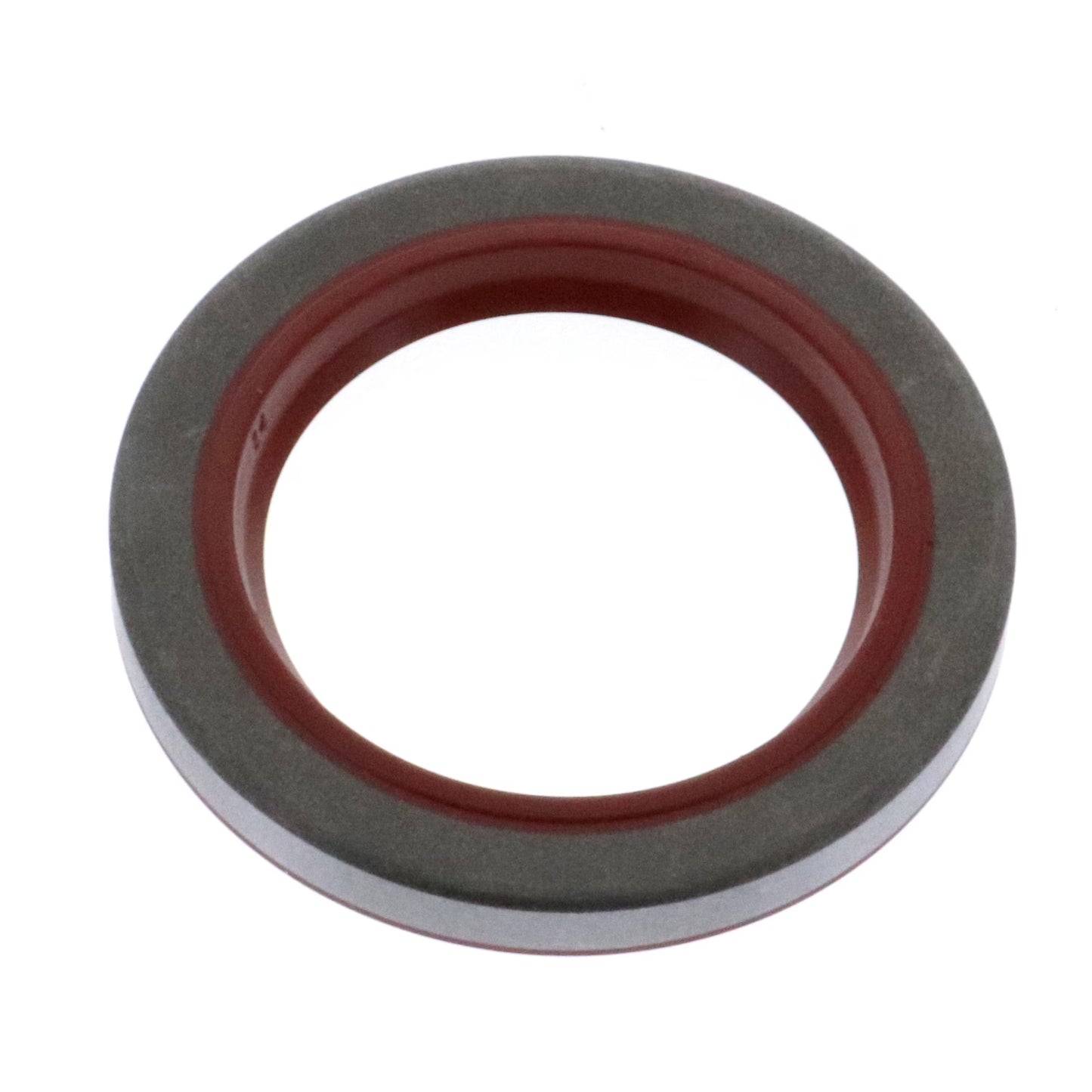

593643 Oil Seal — Briggs & Stratton OEM Engine Oil Seal
The Briggs & Stratton 593643 Seal-Oil is a genuine OEM replacement oil seal designed to prevent engine oil leaks at critical rotating shaft locations. Oil seals are essential for maintaining proper lubrication inside the engine while keeping dirt, dust, and debris out of sensitive internal components. This seal plays a key role in protecting engine performance and extending service life on compatible Briggs & Stratton small engines used in lawn mowers, riding tractors, and outdoor power equipment.
Product Details
Item Number: 593643
Brand: Briggs & Stratton
Part Type: Seal-Oil / Engine Oil Seal
Design: OEM shaft seal for leak prevention and contamination protection
Condition: New Genuine OEM Replacement Part
Application: Seals rotating engine shafts to retain oil
Material: High-durability rubber with metal reinforcement (varies by design)
Typical Dimensions: Exact size varies by engine application (verify parts diagram)
Function
This oil seal is engineered to:
Prevent engine oil leakage around crankshaft or PTO shaft openings
Maintain proper internal lubrication for engine longevity
Keep dirt and moisture from entering the engine case
Replace worn, cracked, or leaking seals causing oil loss
Provide OEM-grade fit and sealing performance under high heat and rotation
Verify Fitment Before Ordering
Before purchasing, confirm:
Part number 593643 is specified in your engine’s parts diagram
The seal dimensions and shaft location match your original seal
Your engine model/type code is compatible with this oil seal
⚠️ Oil seals vary by shaft size and engine series — always verify correct part number before ordering to ensure proper sealing.
Compatibility
This OEM oil seal is commonly used on select Briggs & Stratton engines and applications, including:
Riding lawn mower and garden tractor engines
Engines requiring crankshaft or PTO shaft oil sealing
V-Twin and single-cylinder engine families (model-specific)
(Compatibility list is representative — confirm exact fitment using your Briggs & Stratton engine parts lookup.)
Installation / Usage
Drain engine oil if required for access to seal location.
Remove the component covering the seal area (PTO, sump cover, etc.).
Carefully pry out the old oil seal without damaging the shaft or housing.
Clean the sealing surface thoroughly.
Lightly oil the new seal lip before installation.
Press the new 593643 seal evenly into place using a seal driver or flat tool.
Reassemble components, refill oil, and check for leaks during operation.
Maintenance Tips
Inspect for oil seepage around shaft areas during routine maintenance.
Replace seals immediately if cracking, hardening, or leaking occurs.
Keep shafts clean to prevent premature seal wear.
Avoid running the engine with low oil caused by seal failure.
Notes / Equivalent Replacements
Genuine Briggs & Stratton OEM oil seal 593643 ensures correct sizing, material quality, and long-term leak protection compared to aftermarket seals that may not match factory tolerances.
