Description

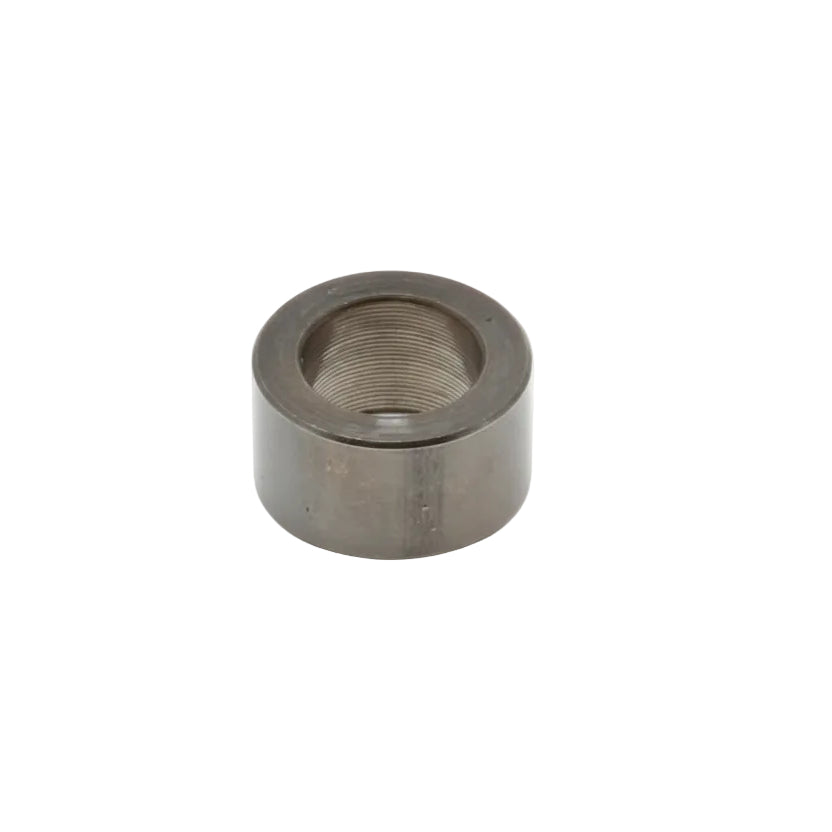

4242 641 4900 STIHL Sleeve 4.4 mm – Genuine OEM Gear Head & Cutter Bar Part
The STIHL Sleeve 4.4 mm (4242 641 4900) is a genuine OEM precision spacer component designed to maintain correct alignment and spacing within the gear head and cutter bar assemblies of select STIHL hedge trimmers and long-reach Kombi attachments. This sleeve supports smooth drivetrain operation by reducing excess play and ensuring proper component positioning inside the gearbox and blade drive system.
Over time, sleeves may wear due to vibration, continuous blade movement, debris exposure, or insufficient lubrication. A worn sleeve can lead to misalignment, increased vibration, uneven cutting performance, or accelerated wear on surrounding gear head components. Replacing it with the correct OEM part restores proper assembly tolerances without replacing the complete gearbox or cutter bar system.
Manufactured to STIHL factory specifications, this genuine sleeve ensures exact fitment, durability, and long-term reliability under demanding professional trimming conditions.
Product Details
OEM Part Number: 4242 641 4900
Brand: STIHL (Genuine OEM)
Part Type: Sleeve / Spacer
Size: 4.4 mm
Application: Gear head and cutter bar alignment component
Condition: New Genuine OEM Part
Function
This STIHL sleeve is designed to:
-
Maintain proper spacing inside the gear head assembly
-
Support smooth blade drive and cutter bar operation
-
Reduce vibration and excess play in moving components
-
Replace worn or damaged internal sleeves
-
Help preserve long-term gearbox and cutter bar performance
⚠️ A worn sleeve can cause misalignment, vibration, or premature gear head wear.
Verify Fitment (Recommended)
Before ordering, confirm:
-
OEM part number 4242 641 4900
-
Sleeve size requirement (4.4 mm)
-
Your unit model matches those listed below
-
Application matches your STIHL illustrated parts diagram
⚠️ Gear head and cutter bar components are model-specific — always verify by OEM part number and drive assembly type.
Compatibility
This OEM sleeve fits many STIHL hedge trimmers, Kombi long-reach attachments, and battery hedge trimmers equipped with specific gear head and angle drive assemblies, including:
Kombi / Long-Reach Hedge Trimmers & Angle Drive Units
HL (Angle drive, adjustable thru 145°, 600 mm)
HL 145° (Angle drive, adjustable thru 145°, 600 mm)
HL 0° (Gear head 0° 500 mm)
HL 56 K (Gear head 0° 500 mm)
HL 91 K (Angle drive, adjustable thru 130°, 600 mm)
HL 94 / HL 94 K / HL 94 KC-E (Angle drive, adjustable thru 145°, 600 mm)
HL-KM (Gear head 0° 600 mm)
HL-KM 0° (Gear head 0° 500 mm)
HL-KM 145° (Angle drive, adjustable thru 145°, 500 mm)
HLA 135 / HLA 135 K (Angle drive, adjustable thru 145°, 600 mm)
HLA 150.0 (Angle drive, adjustable thru 145°, 600 mm)
FH 145° (Angle drive, adjustable thru 145°, 250 mm)
FH-KM 145° (Angle drive, adjustable thru 145°, 250 mm)
Battery Hedge Trimmers
HSA 60.0 / HSA 60.1 / HSA 60.1 SET (Gear head, Electric motor, Cutter bar)
HSA 100.0 / HSA 100.1 (Gear head, Electric motor, Cutter bar)
Hedge Trimmers
HS 46 C-E (Gear head, Cutter bar 550 mm)
(Exact fitment depends on production version and gearbox configuration — always verify using OEM parts diagram.)
Installation Notes
-
Disconnect spark plug or remove battery before servicing
-
Access gear head or cutter bar assembly as required
-
Disassemble components carefully on a clean surface
-
Replace worn sleeve in correct position
-
Inspect surrounding gears, bearings, and lubrication condition
-
Reassemble and torque fasteners to STIHL specifications
-
Test for smooth blade movement and proper operation
⚠️ Gearbox and cutter bar service should be performed carefully to ensure correct alignment and lubrication.
Maintenance Tips
-
Lubricate gear head assemblies at recommended intervals
-
Inspect blade drive components regularly for vibration or play
-
Replace worn sleeves during gearbox rebuilds
-
Keep cutter bar and gear head clean from debris
-
Always use genuine STIHL OEM drivetrain parts for correct fit and durability
