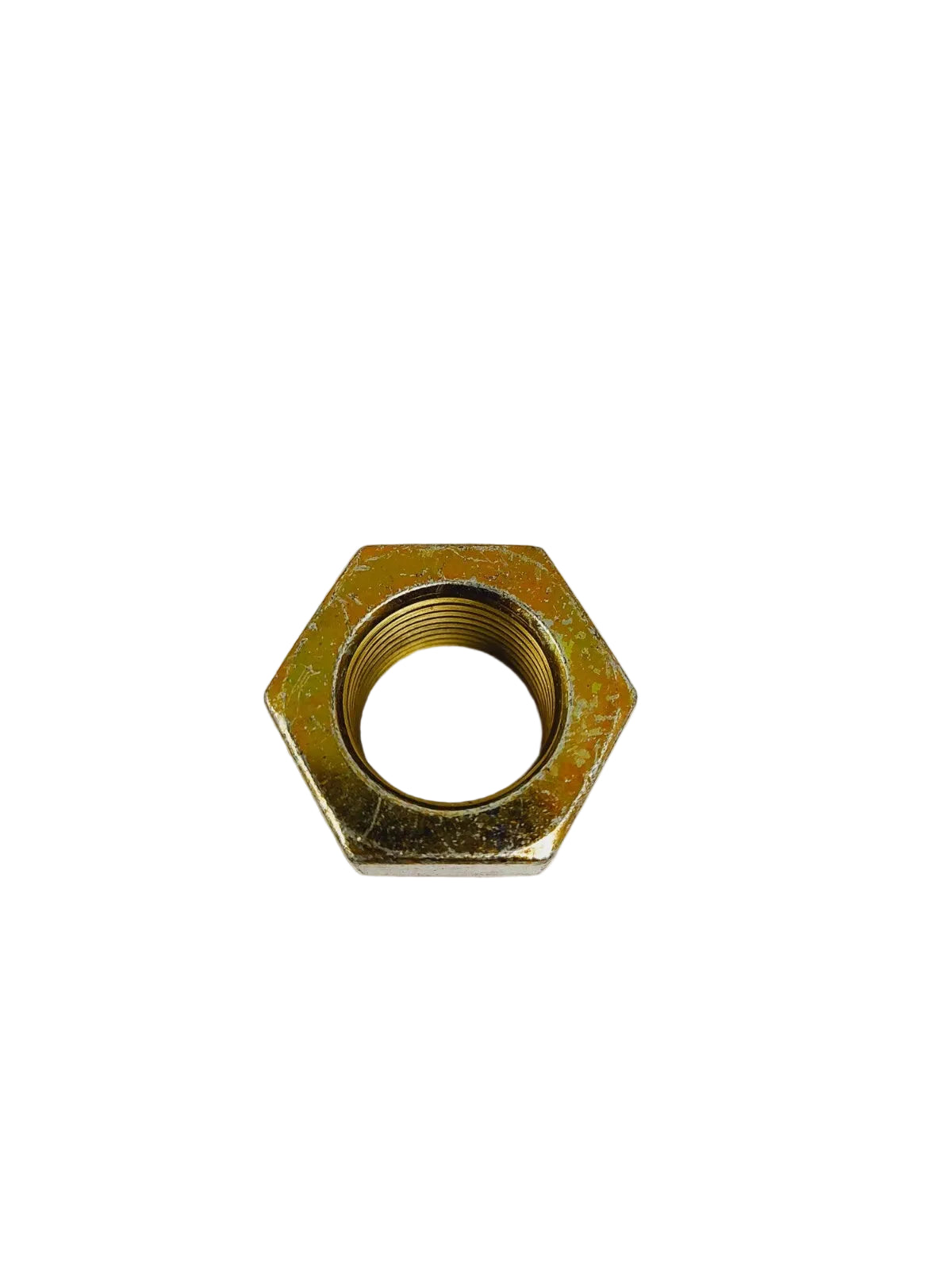

06538400 — Lock Nut 1.0-14 YWZC (Genuine OEM Ariens / Gravely Part)
The 06538400 lock nut is a genuine OEM Ariens / Gravely fastener engineered for high-load structural applications such as steering axles, rear axles, and mower frames. With a 1.0-14 thread size and yellow zinc coating (YWZC), this nut provides excellent corrosion resistance and secure retention in heavy-duty commercial equipment.
This part is commonly used in axle and frame assemblies where strength, durability, and vibration resistance are critical.
Key Details
-
Manufacturer Part Number: 06538400
-
Part Name: Lock Nut
-
Brand: Ariens / Gravely
-
Thread Size: 1.0-14
-
Finish: Yellow Zinc Coated (YWZC)
-
Part Type: Locking hex nut
-
Function: Secures axle and frame components under heavy load
-
Installation: Direct OEM replacement
Applications
The Ariens / Gravely 06538400 lock nut is used extensively in steering axle assemblies, rear axles, and mower frames, especially on larger commercial zero-turn and out-front models.
Compatibility
Gravely Commercial Models
Steering Axle Assembly
-
PM460, 30hp Kubota
-
989055
-
989056 (4WD Assist)
-
989057
-
989304
-
989305 (4WD Assist)
-
989306
-
Rear Axle
-
PM360, 22hp Yanmar – 990010
-
PM360, 22hp Kawasaki – 990016
Frame Assemblies
-
PM250Z (20hp B&S / 22hp Robin / 25hp Kohler, 50" Deck, Hydraulic Lift)
-
992018
-
992021
-
992023
-
992305
-
-
PM260Z (22hp–25hp Kohler / Robin, 60" Deck, Hydraulic Lift)
-
992020
-
992022
-
992024
-
-
PM272Z (25hp Kohler, 72" Deck, Hydraulic Lift)
-
992027
-
These applications span multiple serial number ranges, covering both early and later production units.
Why Use Genuine OEM 06538400
Choosing the OEM Ariens / Gravely 06538400 lock nut ensures:
-
Proper thread engagement on 1.0-14 fasteners
-
Reliable locking under vibration and torque
-
Correct fit for axle and frame assemblies
-
Long service life in commercial mowing conditions
This nut is designed to meet factory strength and safety requirements, making it the correct replacement for Gravely and Ariens commercial equipment.
