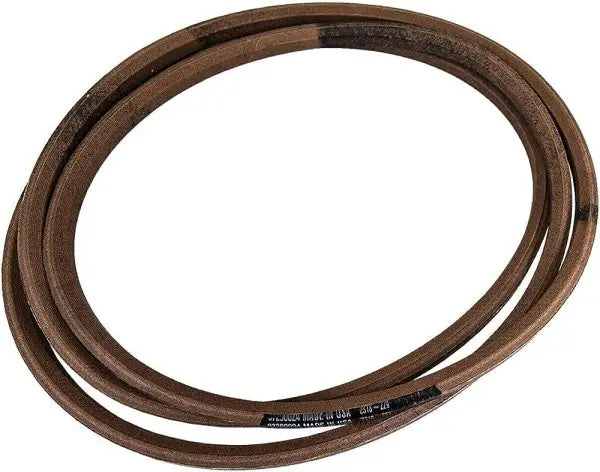

07200024 – Ariens / Gravely Hex Belt, BB Wrapped (OEM)
The 07200024 Hex Belt is a genuine Ariens / Gravely OEM BB wrapped “double-V” belt used in mower deck drive systems where the belt may run on both sides (typical in certain deck routing/idler layouts). The wrapped construction helps reduce cracking and abrasion, improves stability under load, and supports proper tracking on OEM pulleys and idlers for reliable blade drive performance.
Product Details
-
Part Number: 07200024
-
Brand: Ariens / Gravely (OEM)
-
Description: Hex Belt, BB Wrapped (Double-V)
-
Belt Type: Wrapped hex belt (BB profile)
-
Condition: New, genuine OEM part
Function
-
Transfers power through complex deck belt routing where both belt sides may be used
-
Maintains consistent grip and belt tracking on idlers and pulleys
-
Wrapped jacket helps resist heat, debris, and edge wear
-
Helps keep blade drive smooth and dependable for a clean cut
Where Used
This belt is used on many Ariens / Gravely ProMaster and Pro-Turn mower platforms, commonly found in sections such as Belts, Spindles, Idlers and Mower Blades and Deck Belts & Blades. Examples include:
ProMaster XDZ / M / H (Mechanical & Hydraulic Lift)
-
PM144XDZ (21hp Kawasaki, 44" deck, mech. lift)
-
PM148XDZ (21hp Kawasaki, 48" deck, mech. lift)
-
PM152XDZ (23hp Kawasaki, 52" deck, mech. lift)
-
PM160XDZ (25hp Kawasaki, 60" deck, mech. lift)
-
PM144M (21hp Kawasaki, 44" deck, mech. lift)
-
PM148M (21hp Kawasaki, 48" deck, mech. lift)
-
PM152M (23hp Kawasaki, 52" deck, mech. lift)
-
PM152M (25hp Kohler, 52" deck, mech. lift)
-
PM160M (23hp Kawasaki, 60" deck, mech. lift)
-
PM160M (25hp Kohler, 60" deck, mech. lift)
-
PM148H (21hp Kawasaki, 48" deck, hydraulic lift)
ProMaster “i” Series
-
PM148i (48" deck)
-
PM152i (52" deck)
-
PM160i (60" deck)
Pro-Turn Series
-
Pro-Turn 148 (48" deck)
-
Pro-Turn 152 (52" deck)
-
Pro-Turn 160 (60" deck)
-
Also used across multiple Pro-Turn 148 / 152 variations (EFI, CARB, RD/SD/CE configurations) in Belts/Idlers/Blades and Deck Belts & Blades sections across various serial ranges.
Tip: Because Pro-Turn models have multiple deck configurations and serial breaks, match your model + serial number to confirm the exact belt application before ordering.
Why Choose OEM
-
Correct BB hex profile for OEM deck routing
-
Designed for proper fit, tension, and tracking on Ariens/Gravely systems
-
Better durability and performance than generic double-V belts
-
Helps protect spindles and idlers by reducing slip and shock loads
