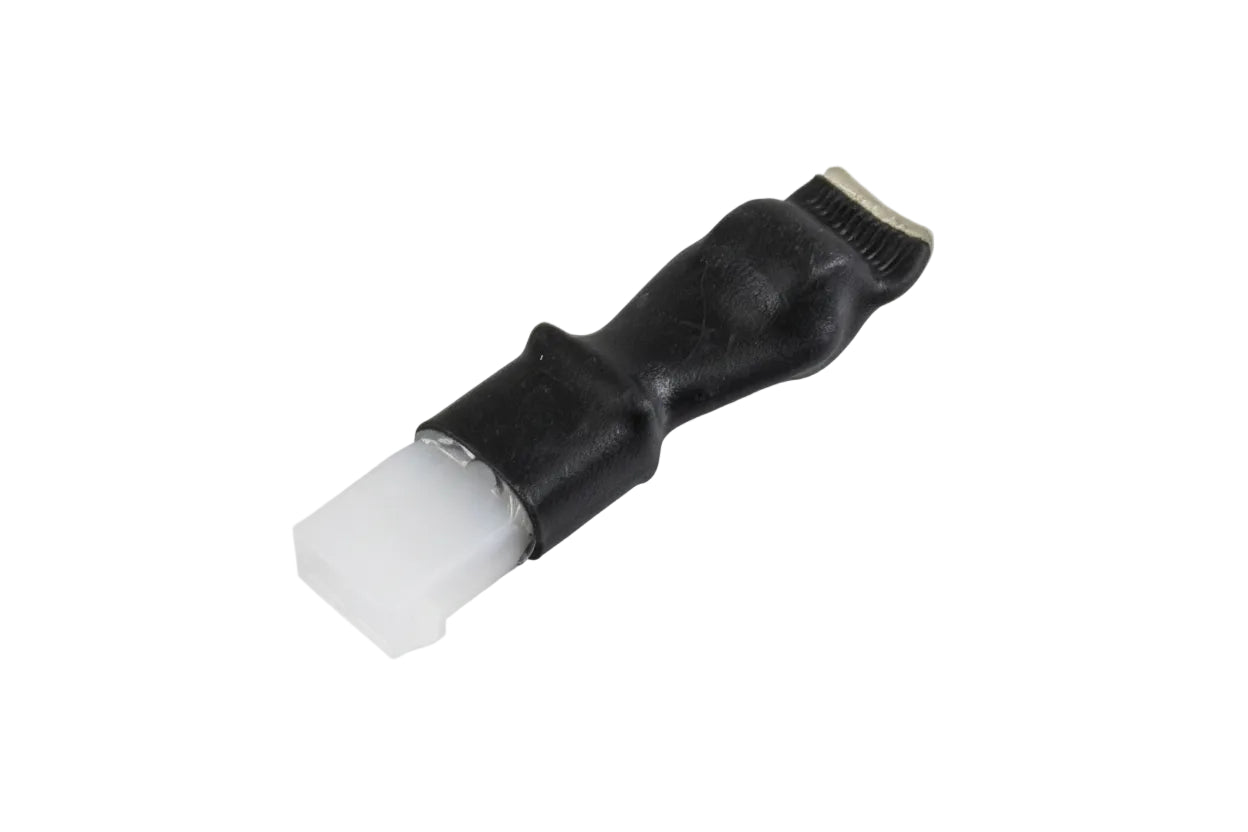

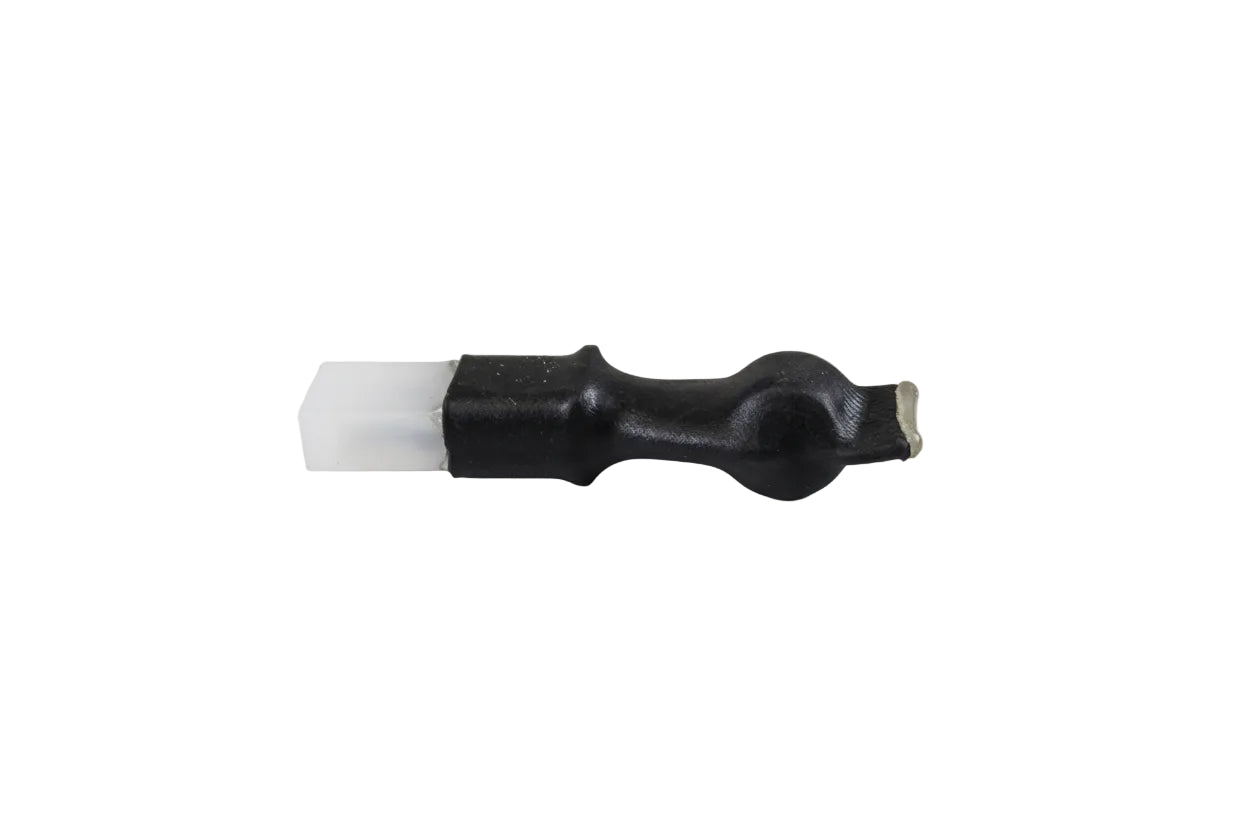

09293501 – Diode, Connector Shell – Ariens / Gravely OEM
09293501 Diode, Connector Shell is a genuine OEM Ariens / Gravely electrical component designed to regulate electrical current and protect sensitive circuits within the equipment wiring system. Manufactured to factory specifications, this diode helps prevent reverse current flow and electrical damage, ensuring reliable and safe operation.
Ideal for service, repair, and electrical system maintenance, this component provides proper fit, dependable performance, and long service life across a wide range of Ariens and Gravely zero-turn and commercial mower models.
Key Features
-
Genuine Ariens / Gravely OEM diode
-
Connector shell design for secure electrical installation
-
Helps protect electrical systems from reverse current
-
Manufactured to factory electrical specifications
-
Suitable for professional and residential equipment
Product Details
-
Manufacturer Part Number: 09293501
-
Brand: Ariens / Gravely
-
Product Type: Electrical Diode
-
Configuration: Connector Shell
-
Packaging: Single diode
-
OEM Status: Genuine Ariens / Gravely OEM
Applications
Used across a wide range of Ariens and Gravely equipment, including but not limited to:
-
ZT, ZT XL, and ZT HD series
-
Pro-Turn, Pro-Turn ZX, and Pro-Turn Z models
-
Pro-Stance and Z-Stance series
-
Compact-Pro and Pro-Walk models
-
EFI and non-EFI electrical systems
(Refer to the equipment parts diagram to confirm exact placement and model compatibility.)
Using genuine Ariens / Gravely OEM electrical components helps ensure proper circuit protection, reliable operation, and compliance with manufacturer specifications.
