Description

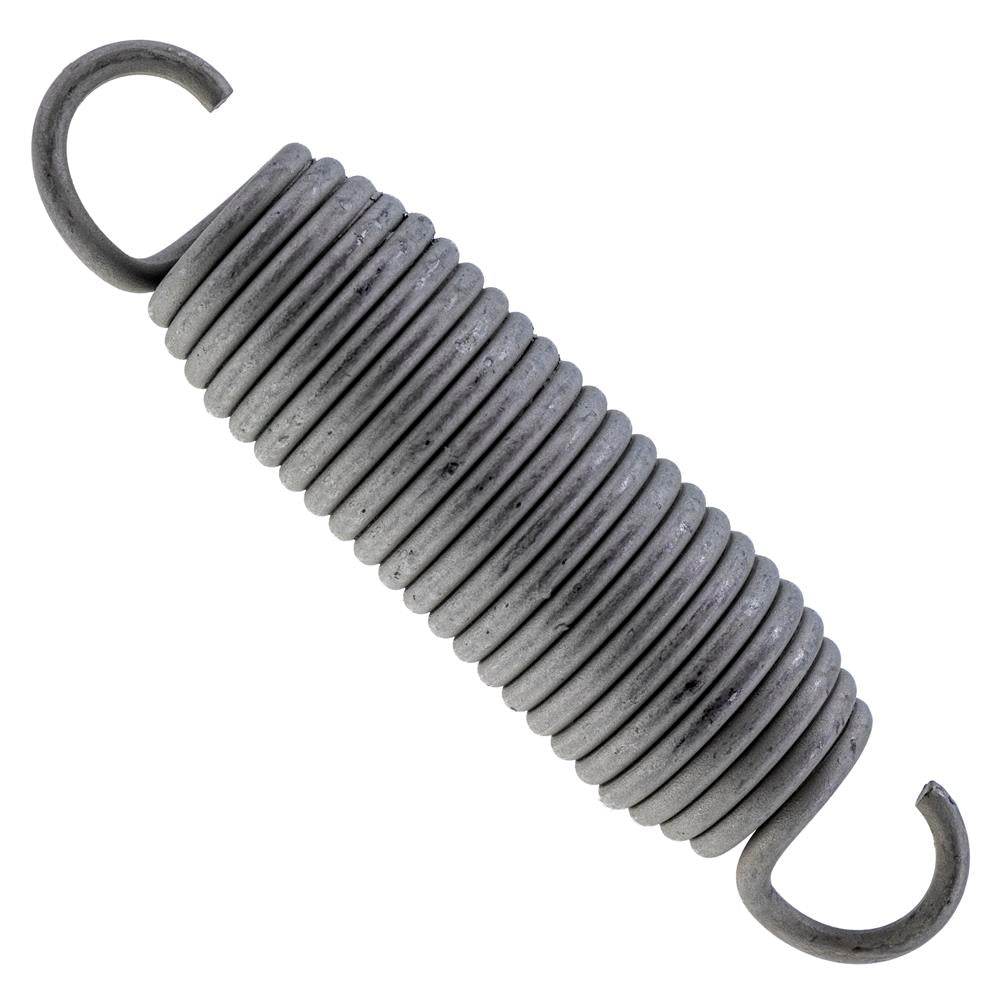

116-6316 – Toro Extension Spring (Genuine Toro OEM Part)
The Toro 116-6316 is a genuine OEM extension spring, designed to provide controlled tension and reliable return force in Toro lawn and turf equipment. This spring is used in various deck, drive, and linkage applications where consistent spring tension is required to maintain proper component positioning and smooth operation.
Manufactured to Toro original equipment specifications, the 116-6316 extension spring is made from high-quality spring steel engineered to withstand repeated stretching, vibration, and demanding outdoor conditions. Using a genuine Toro spring ensures correct tension characteristics, precise fitment, and long-term durability.
Product Details
-
Manufacturer Part Number: 116-6316
-
Brand: Toro
-
Part Type: Extension Spring
-
Category Code: 2PX
-
System: Deck / linkage / tensioning assemblies
-
Function: Provides controlled tension and return force
-
Material: High-strength spring steel
-
OEM Status: Genuine Toro OEM replacement
Function
-
Maintains proper tension in mechanical linkages
-
Returns components smoothly to their resting position
-
Supports consistent and reliable equipment operation
Compatible With Toro Equipment
The Toro 116-6316 Extension Spring is used on select Toro lawn and turf equipment, commonly found in:
-
Mower deck tensioning systems
-
Drive and engagement linkages
-
Return spring applications within control assemblies
(Exact compatibility depends on the specific Toro model and configuration.)
How It’s Used
This extension spring installs between two designated mounting points where tension is required. As the connected component moves, the spring stretches to provide resistance and then returns the component smoothly when released.
Proper installation and correct orientation are essential to achieve the intended tension and performance.
Suggested Maintenance
-
Inspect the spring regularly for stretching, corrosion, or deformation
-
Ensure spring hooks remain securely seated
-
Replace the spring if tension weakens or cracking is observed
-
Keep surrounding components clean to prevent premature wear
The Toro 116-6316 Extension Spring is used in OEM-specified Toro assemblies where accurate tension control, durability, and dependable mechanical performance are essential.
