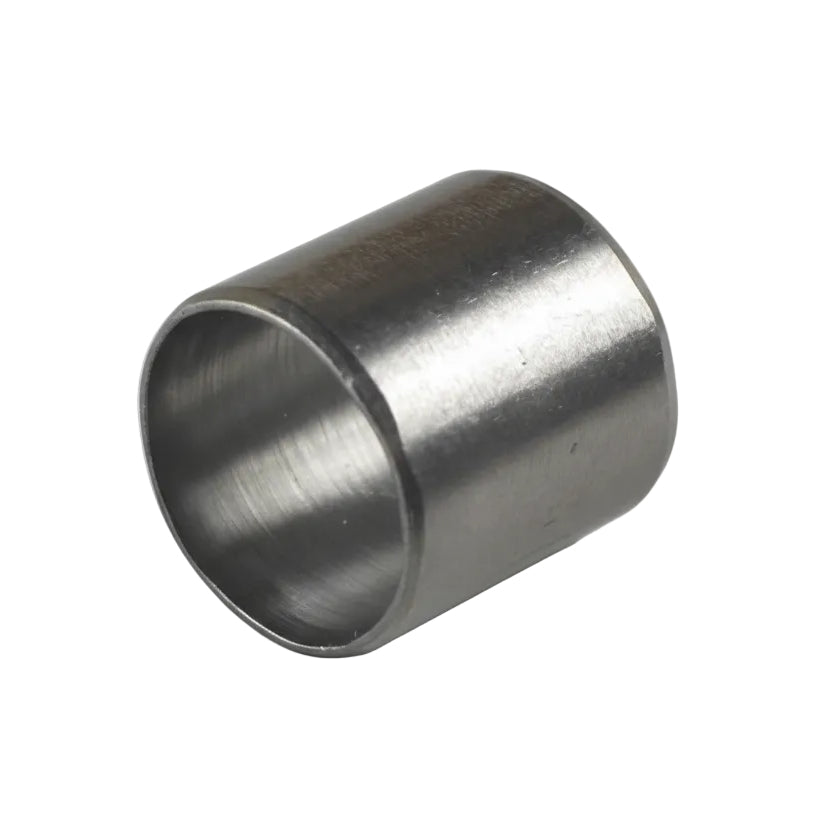

24 380 16-S Locating Pin Kohler – Genuine OEM Replacement Part
The Kohler 24 380 16-S Locating Pin is a genuine OEM replacement component designed for Kohler small engines. This locating pin is used to properly align engine components during assembly, ensuring correct positioning, secure fit, and reliable operation.
Manufactured to Kohler factory specifications, this part provides the correct fit, durability, and dependable performance for outdoor power equipment applications.
Product Details
-
Manufacturer Part Number: 24 380 16-S
-
Brand: Kohler
-
Part Type: Locating Pin
-
Application: Engine Component Alignment / Assembly Hardware
-
OEM Status: Genuine OEM Replacement Part
-
Condition: New
Function
The Kohler 24 380 16-S Locating Pin is designed to:
-
Ensure proper alignment of engine components during assembly
-
Maintain secure positioning of mating parts
-
Replace missing or damaged locating pins
-
Support correct engine operation and structural integrity
-
Restore factory assembly specifications
Compatibility
This OEM locating pin fits select Kohler small engine models commonly used in:
-
Riding mowers
-
Lawn tractors
-
Zero-turn mowers
-
Commercial outdoor power equipment
⚠️ Always verify your exact engine model and serial number before ordering to ensure proper fit.
Installation / Usage
The locating pin installs into designated alignment holes within the engine assembly. Replacement is recommended whenever engine components are disassembled or if alignment hardware becomes worn or damaged.
For best results:
-
Follow Kohler service manual guidelines
-
Ensure pin is seated properly during installation
-
Use only genuine OEM Kohler replacement parts
Maintenance Tips
-
Inspect locating pins during engine rebuilds or servicing
-
Replace pins that are bent, worn, or missing
-
Maintain proper alignment for safe engine operation
-
Always use OEM parts for correct fit and long-term durability
