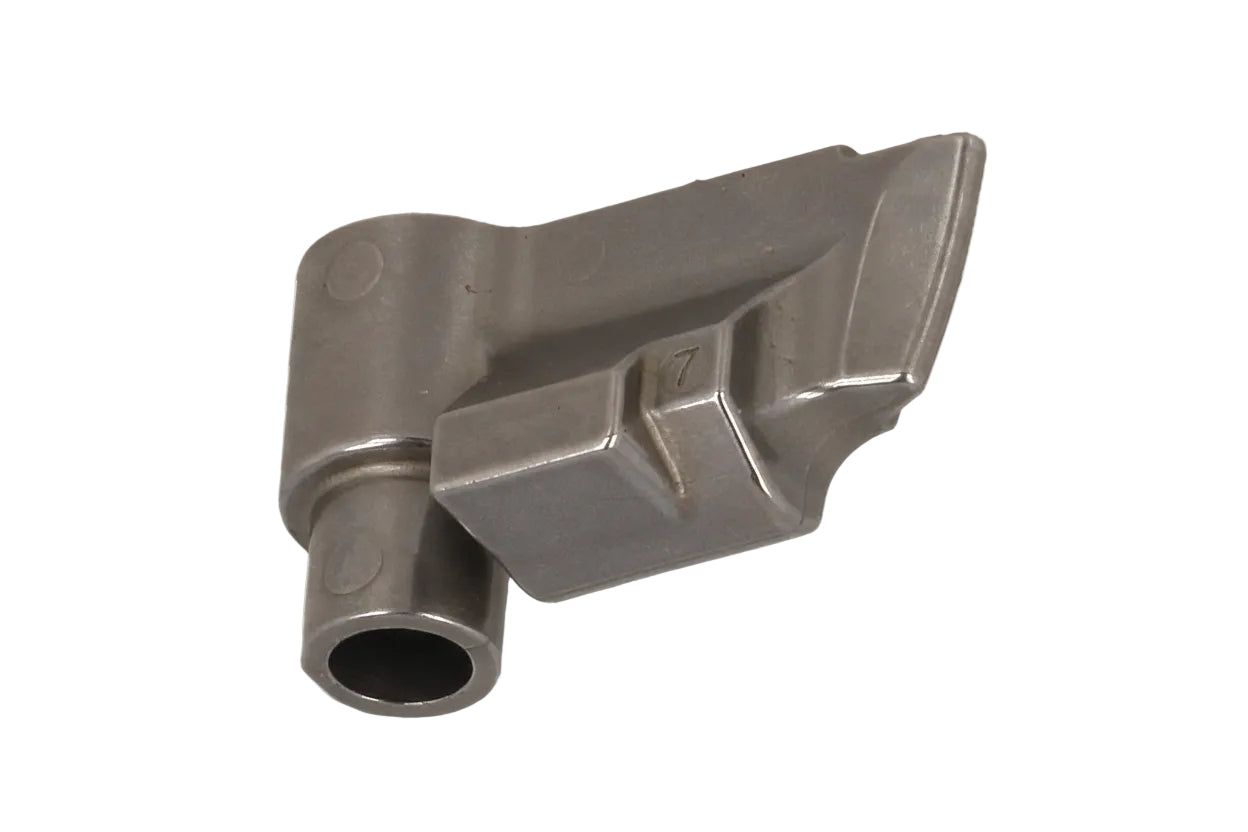

4243 708 6202 STIHL Notched Quadrant – Genuine OEM Angle Drive Part
The STIHL Notched Quadrant (4243 708 6202) is a genuine OEM angle adjustment component designed for select STIHL long-reach hedge trimmers and KombiSystem attachments equipped with adjustable angle drive assemblies. This notched quadrant works as part of the locking mechanism that allows the gear head to be positioned securely at multiple cutting angles.
Over time, the notched quadrant may wear due to repeated angle adjustments, vibration, heavy-duty trimming, or debris contamination. A worn or damaged quadrant can cause improper locking, loose angle positioning, or unsafe gear head movement. Replacing it with the correct OEM part restores secure angle engagement and smooth adjustment operation without replacing the complete gear head assembly.
Manufactured to STIHL factory specifications, this genuine notched quadrant ensures precise fitment, reliable locking performance, and long-term durability under professional operating conditions.
Product Details
OEM Part Number: 4243 708 6202
Brand: STIHL (Genuine OEM)
Part Type: Notched Quadrant
Application: Adjustable angle drive locking mechanism
Condition: New Genuine OEM Part
Function
This STIHL notched quadrant is designed to:
-
Provide indexed angle positions for the gear head
-
Securely lock the cutter bar at selected angles
-
Maintain stable blade alignment during operation
-
Replace worn or damaged angle locking components
-
Restore smooth and reliable angle adjustment function
⚠️ A worn notched quadrant can cause improper locking or unstable gear head positioning.
Verify Fitment (Recommended)
Before ordering, confirm:
-
OEM part number 4243 708 6202
-
Your unit model matches those listed below
-
Application matches your STIHL illustrated parts diagram
⚠️ Angle drive components are model-specific — always verify by OEM part number and gear head configuration.
Compatibility
This OEM notched quadrant fits select STIHL long-reach hedge trimmers and Kombi attachments equipped with adjustable angle drive assemblies, including:
Long-Reach Hedge Trimmers / Angle Drive Units
HL (Angle drive, adjustable thru 145°, 600 mm)
HL 145° (Angle drive, adjustable thru 145°, 600 mm)
HL 91 K (Angle drive, adjustable thru 130°, 600 mm)
HL 94 / HL 94 K / HL 94 KC-E
(Angle drive, adjustable thru 145°, 600 mm)
HL-KM 145°
(Angle drive, adjustable thru 145°, 600 mm)
HLA 135 / HLA 135 K
(Angle drive, adjustable thru 145°, 600 mm)
HLA 150.0
(Angle drive, adjustable thru 145°, 600 mm)
Kombi Attachments
FH 145° (Angle drive, adjustable thru 145°, 250 mm)
FH-KM 145° (Angle drive, adjustable thru 145°, 250 mm)
(Exact fitment depends on production version — always verify using OEM parts diagram.)
Installation Notes
-
Disconnect spark plug before servicing
-
Access angle drive adjustment assembly
-
Remove worn or damaged quadrant carefully
-
Install new notched quadrant in correct orientation
-
Inspect locking pawl, spring, and pivot components during service
-
Reassemble and test angle adjustment function
⚠️ Angle drive components may be spring-loaded — service should be performed carefully.
Maintenance Tips
-
Avoid forcing angle adjustments beyond designed range
-
Inspect locking mechanism periodically for wear
-
Maintain proper lubrication in angle drive assembly
-
Replace worn locking components promptly
-
Always use genuine STIHL OEM angle drive parts for correct fit and safe operation
