Description

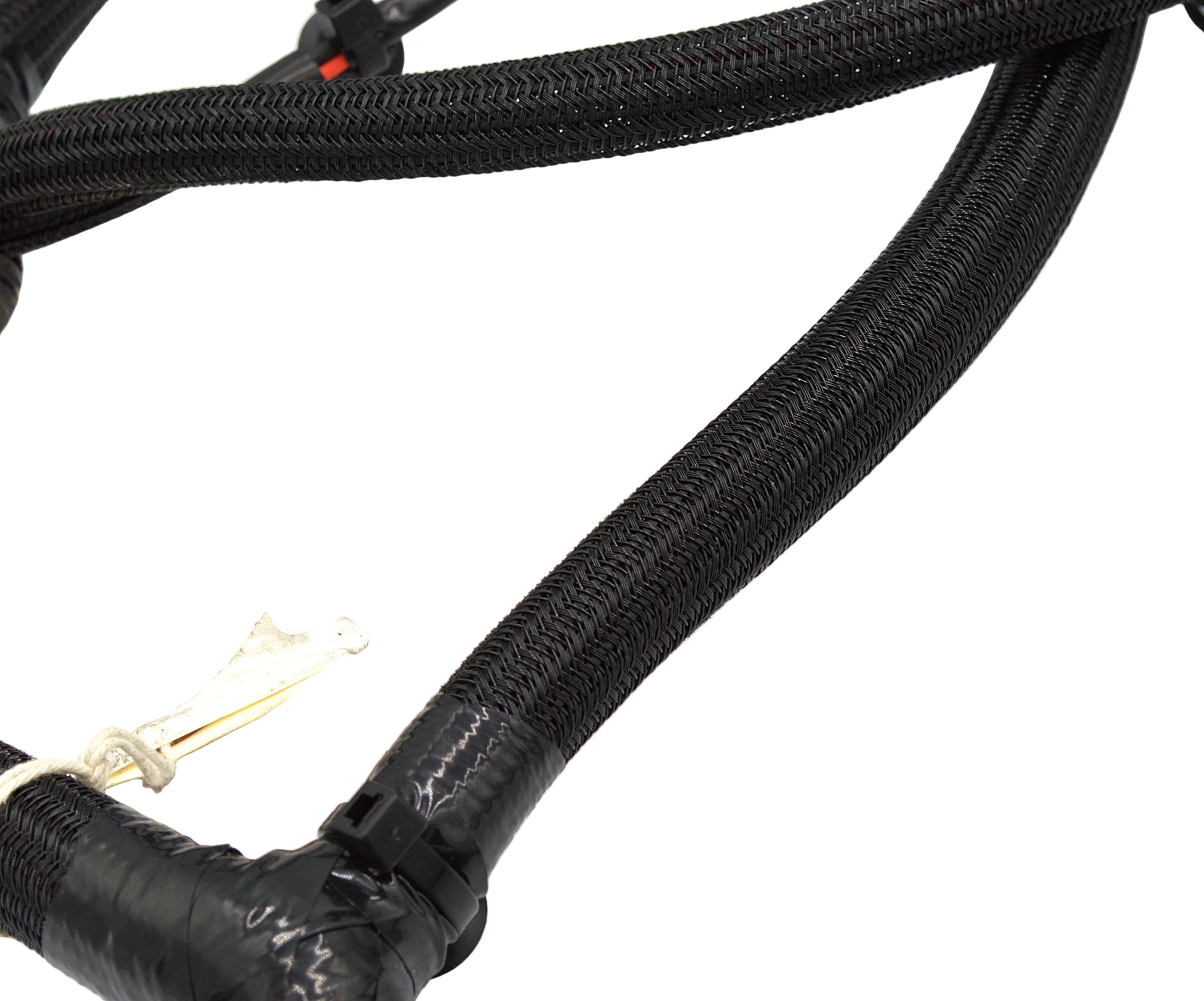

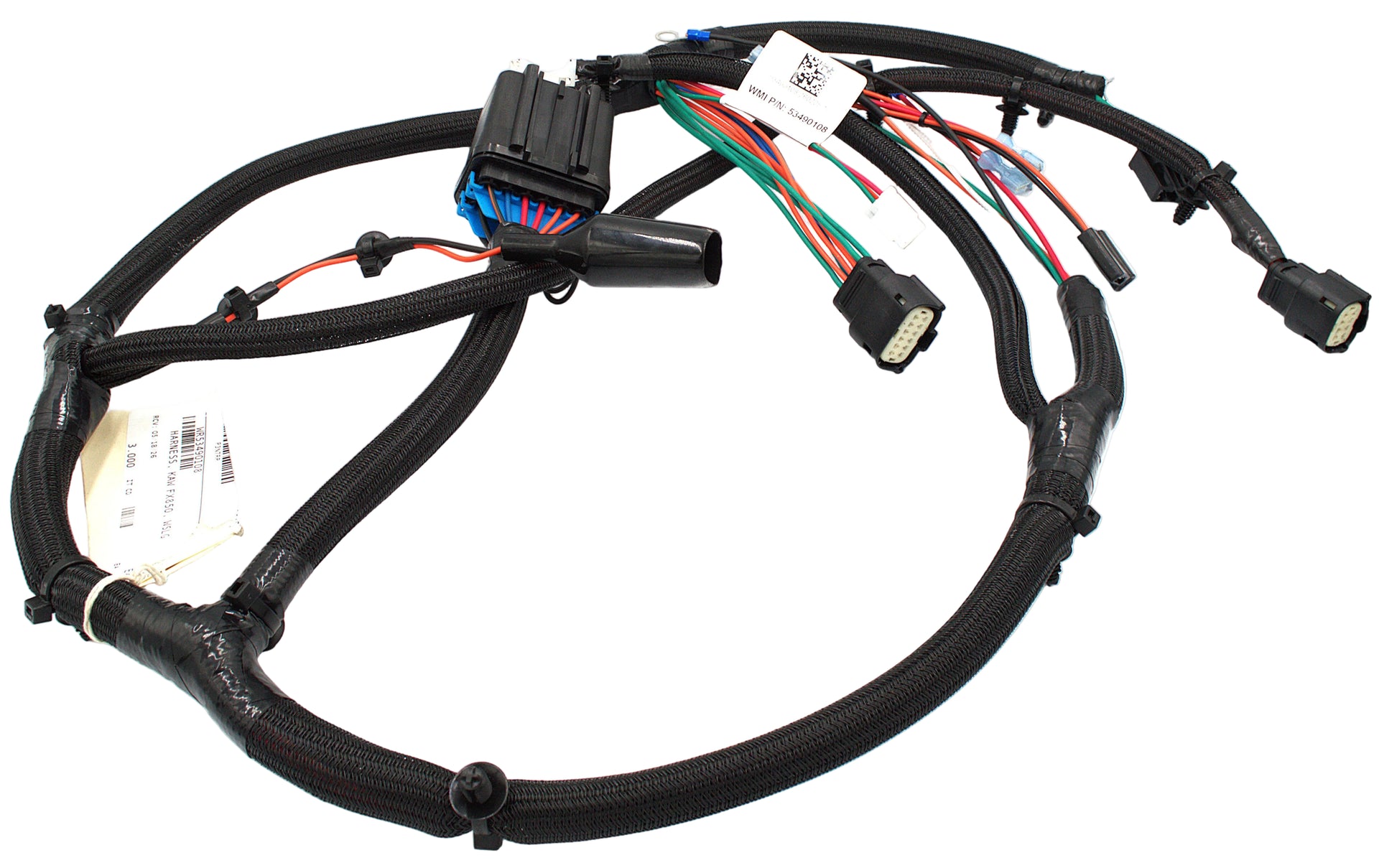

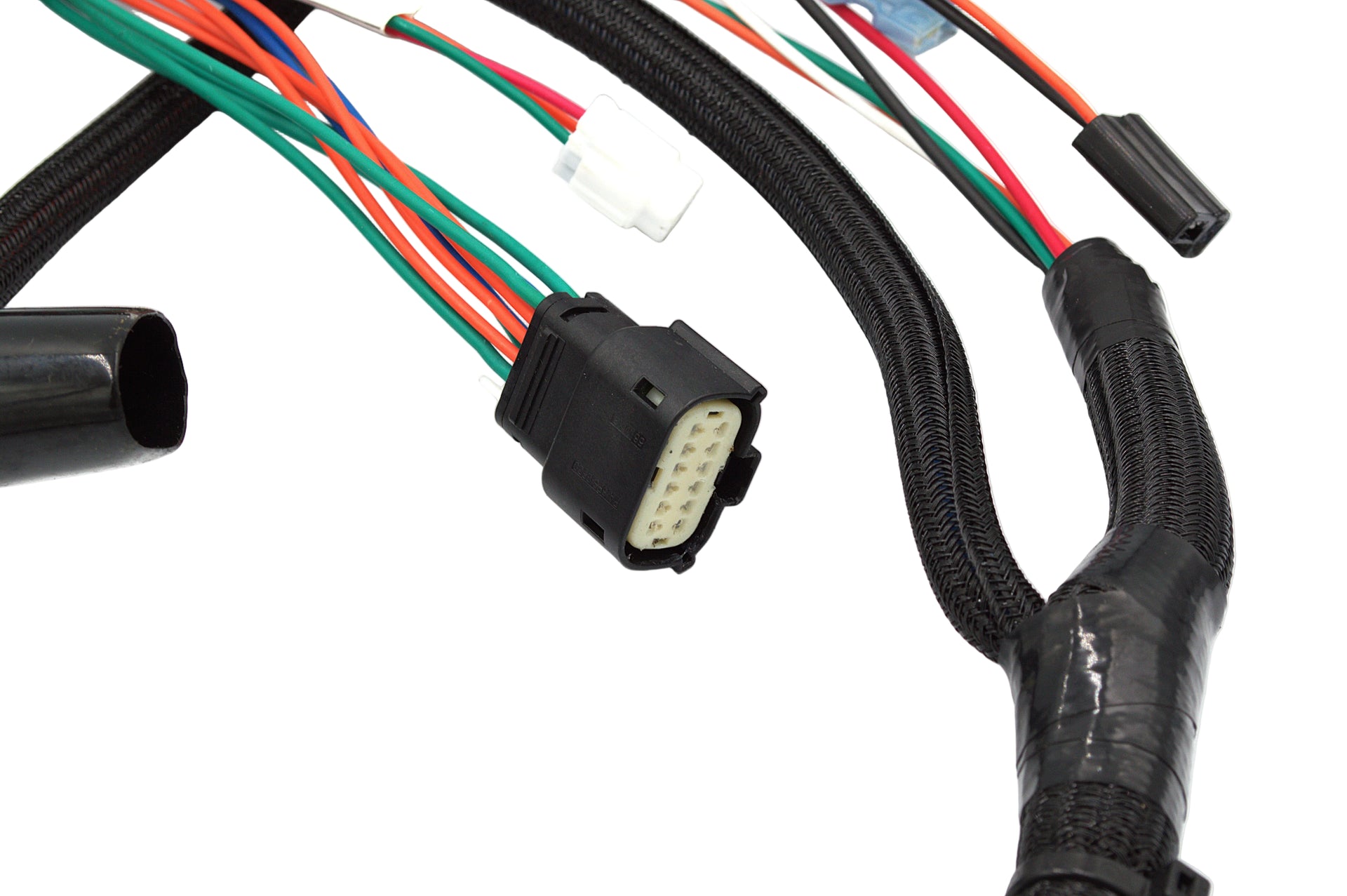

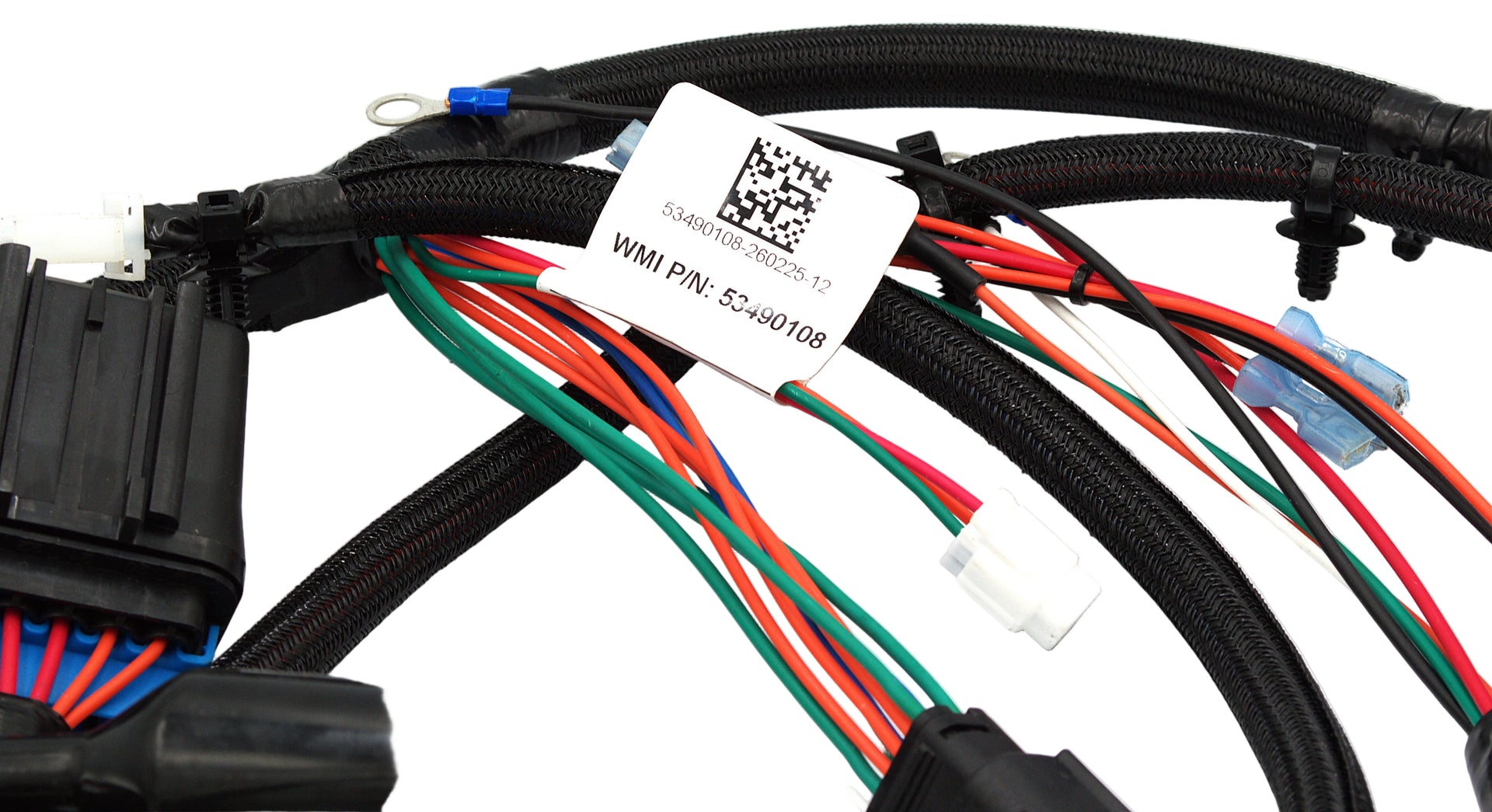

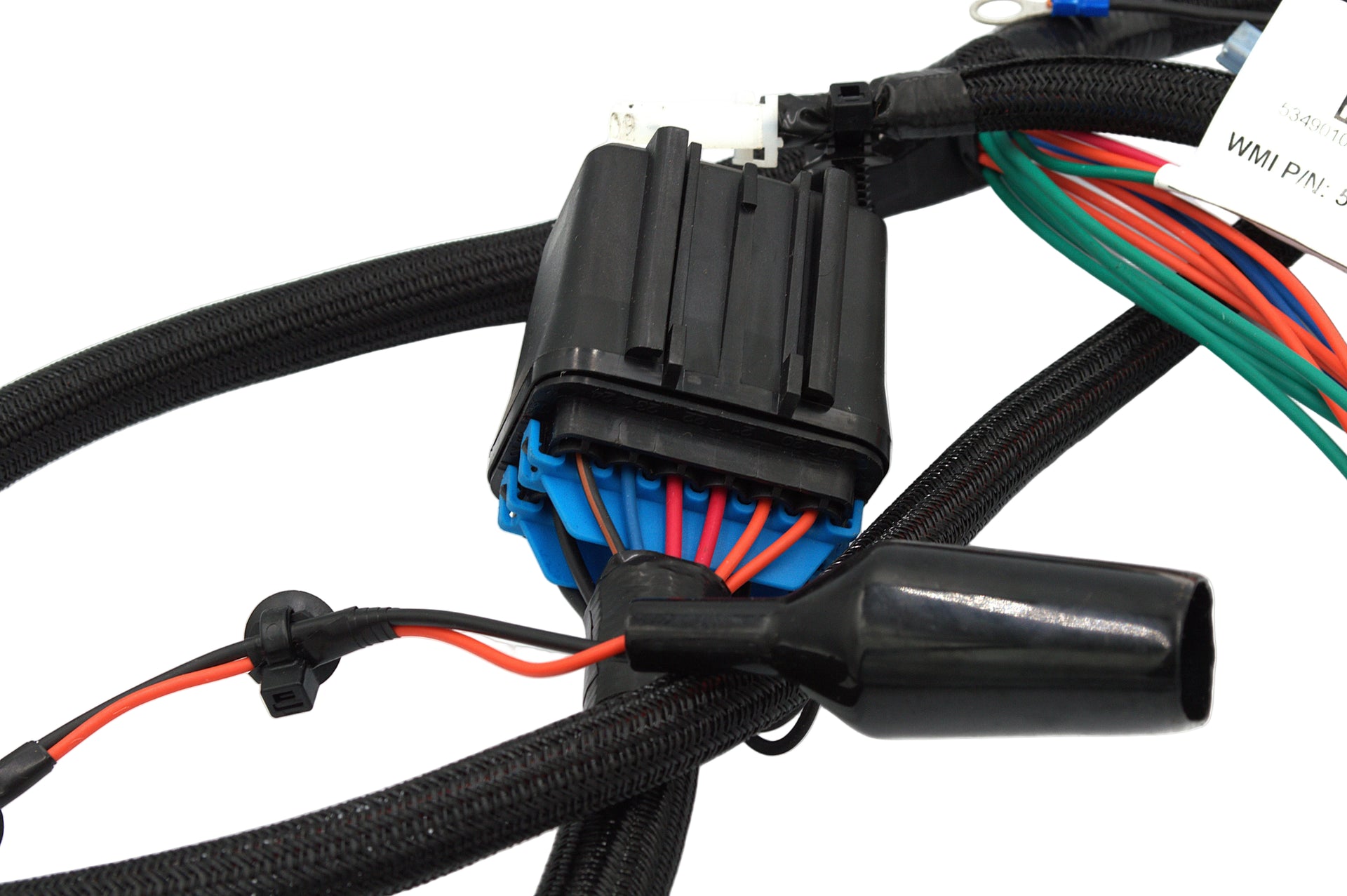

53490108 – Wright Kawasaki FX850 Wiring Harness (WSLG) (OEM-Spec)
The Wright 53490108 Wiring Harness for Kawasaki FX850 (WSLG) is a genuine OEM-spec electrical harness engineered to provide reliable engine-to-mower electrical integration on Wright commercial mowing equipment equipped with the Kawasaki FX850 engine. Designed to Wright Manufacturing’s exact specifications, this harness supports proper routing of ignition, charging, electric start, safety interlock, and engine control circuits where applicable. Built for demanding commercial turf environments, the 53490108 harness ensures secure connections, organized wiring layout, and long-term electrical system dependability.
Product Details
Manufacturer Part Number: 53490108
Brand: Wright (OEM-Spec)
Part Type: Engine Wiring Harness Assembly
Engine Application: Kawasaki FX850
Harness Designation: WSLG Configuration (application-specific)
Function: Electrical integration between FX850 engine and mower main harness
Application: Wright commercial mowers equipped with Kawasaki FX850 engines
Harness Style: Pre-terminated OEM harness with factory connectors
Construction: Heavy-duty insulated wiring with secure OEM connector ends
OEM Status: Genuine Wright replacement part
Function
Provides complete electrical connectivity for Kawasaki FX850 engine systems
Supports electric start, ignition, charging, and engine safety circuits
Ensures proper signal routing between engine components and mower controls
Maintains factory wiring integrity without splicing or modification
Reduces electrical downtime caused by worn or damaged engine harness assemblies
Compatible With
The Wright 53490108 Kawasaki FX850 Harness is used on select Wright commercial turf equipment, including:
Wright stand-on and zero-turn mowers powered by Kawasaki FX850 engines
Models requiring OEM harness part number 53490108 in WSLG configuration
Equipment specified in Wright parts diagrams for FX850 engine wiring harness assemblies
Because harness configurations vary by mower model and serial number range, always verify compatibility using your mower’s exact model, serial number, and engine specification before ordering.
How It’s Used
This engine harness installs between the Kawasaki FX850 engine wiring system and the mower’s main electrical harness:
Turn off the mower and disconnect the battery before servicing.
Locate the engine harness connection points near the FX850 engine.
Disconnect existing connectors carefully and label if needed.
Remove mounting clips or ties securing the old harness.
Install the Wright 53490108 harness along the factory routing path.
Reconnect all OEM connectors securely, ensuring proper locking engagement.
Secure harness away from exhaust heat, moving parts, and sharp edges.
Reconnect battery power and test starting, charging, and engine control functions.
Proper installation ensures reliable electrical performance and safe engine operation.
Suggested Maintenance
Inspect harness routing regularly for abrasion, heat exposure, or vibration wear
Check connectors for corrosion, moisture intrusion, or loose seating
Keep engine electrical areas clean and free of debris buildup
Replace harness immediately if electrical functions become intermittent
Use only OEM-spec Wright harness assemblies to ensure correct fit and system compatibility
The Wright 53490108 Kawasaki FX850 Wiring Harness (WSLG) is a dependable OEM-spec replacement designed to restore proper engine electrical integration, ensure reliable starting and charging performance, and maintain long-lasting durability on compatible Wright commercial mowing equipment.
