LA01 007 1002 HLA135 Support Foot | Genuine STIHL OEM Replacement

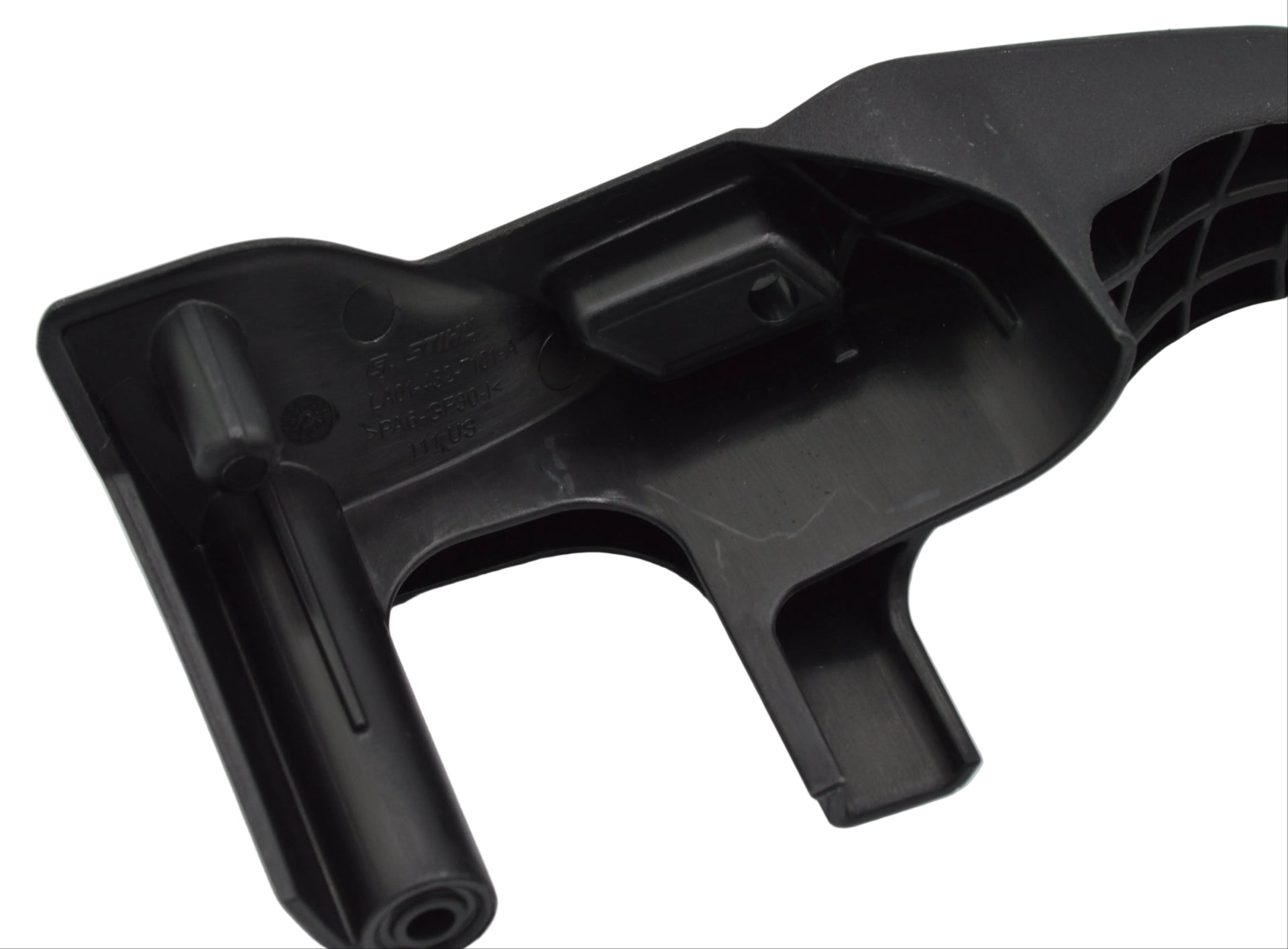

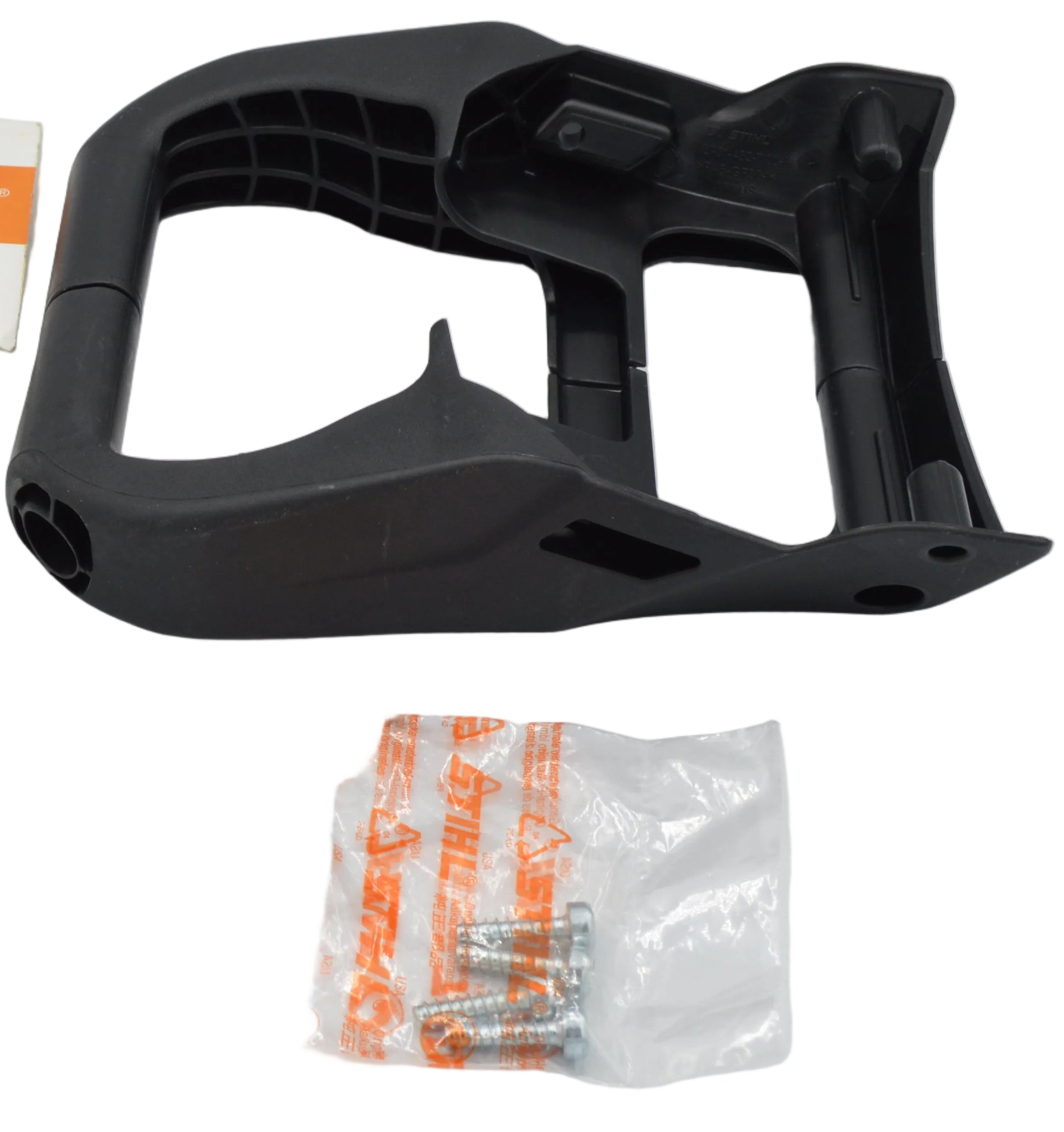

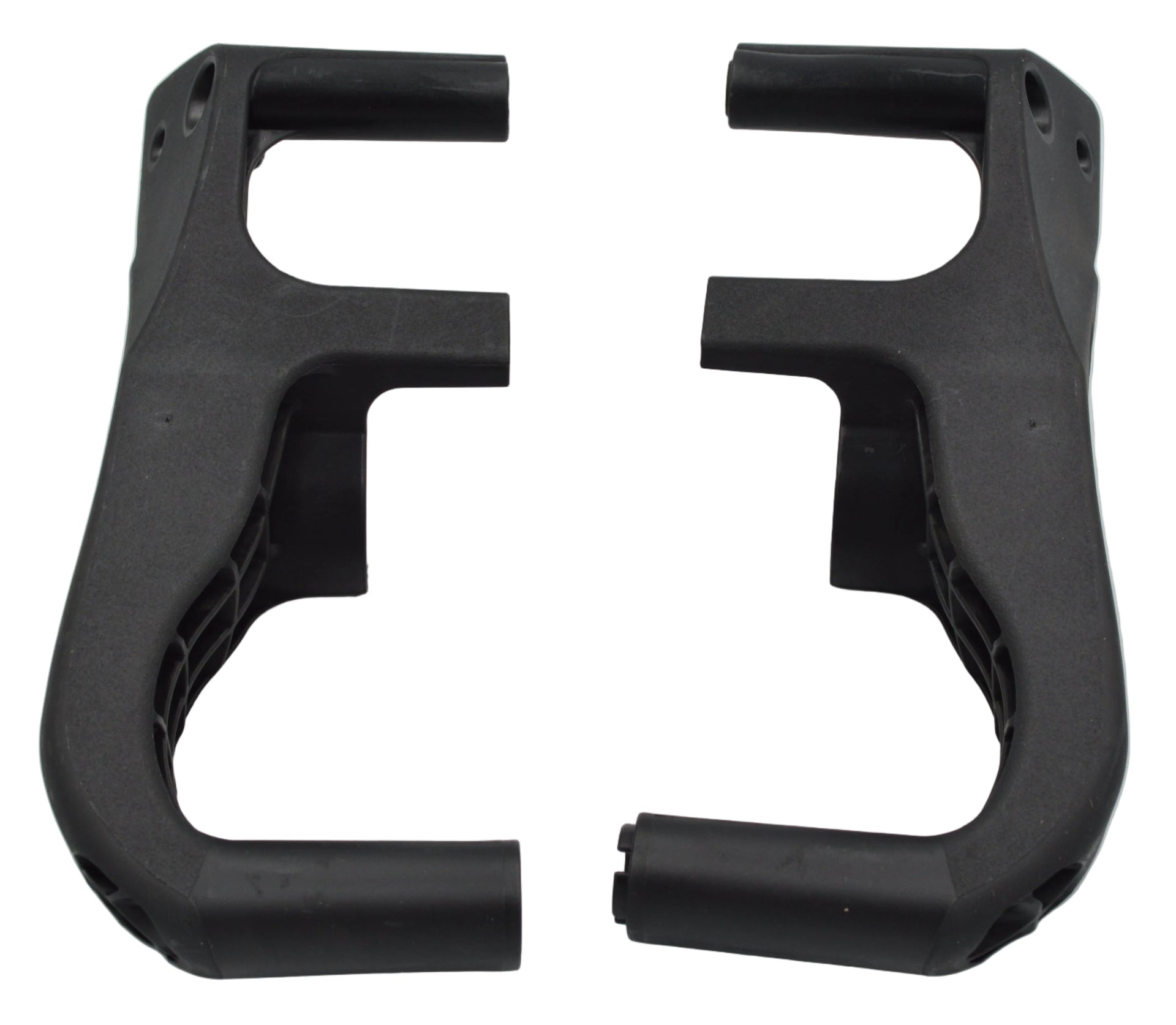

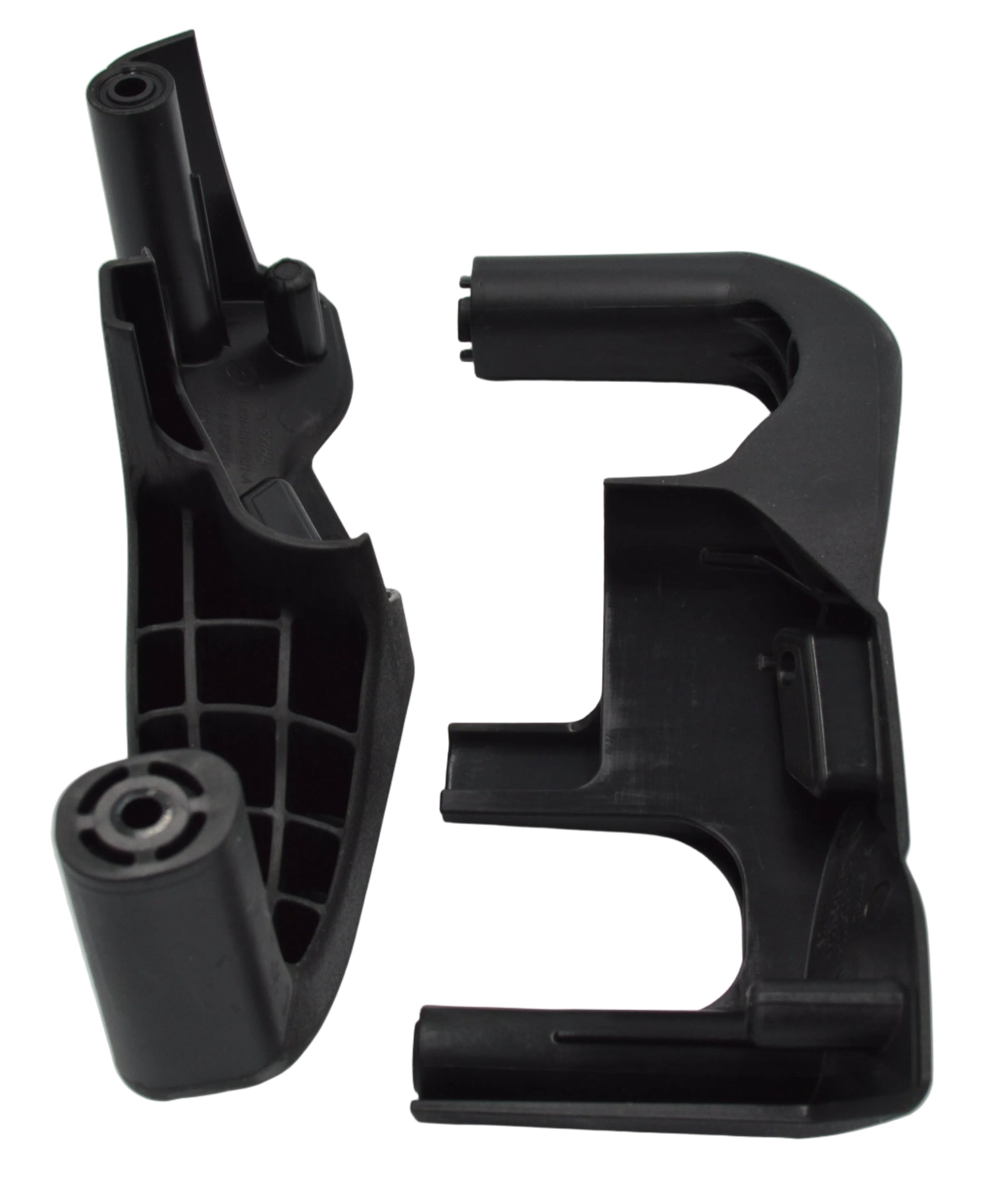

The STIHL LA01 007 1002 HLA135 Support Foot is a genuine STIHL OEM replacement part designed to provide support and stability for compatible STIHL cordless pole pruners. This support foot is used in the motor housing and control-handle assembly of the HTA 135, HTA 150.0, and HTA 160.0.
Features That Make a Difference
-
Genuine STIHL OEM replacement part
-
Part Number: LA01 007 1002
-
Product: HLA135 Support Foot
-
Designed for compatible STIHL HTA pole pruners.
-
Provides a stable support point for the equipment.
-
OEM-engineered for proper fit and alignment.
-
Used within the electric motor, motor housing, and control handle assembly.
Benefits
-
Replaces a worn, damaged, or missing support foot.
-
Helps maintain proper equipment stability.
-
Restores the original configuration of the motor-housing assembly.
-
Genuine STIHL construction provides proper fit and reliable durability.
-
Ideal for equipment repair and OEM restoration.
Specifications
| Specification | Details |
|---|---|
| Part Number | LA01 007 1002 |
| Product | HLA135 Support Foot |
| Brand | STIHL |
| Product Type | Support Foot |
| Assembly | Electric Motor / Motor Housing / Control Handle |
| Applications | HTA 135, HTA 150.0, HTA 160.0 |
| Part Type | Genuine OEM Replacement |
Compatibility
The LA01 007 1002 HLA135 Support Foot is listed for:
-
HTA 135 — Electric motor, Motor housing, Control handle
-
HTA 150.0 — Electric motor, Motor housing, Control handle
-
HTA 160.0 — Electric motor, Motor housing, Control handle
Always verify your exact STIHL model and parts diagram before ordering.
What Does the Support Foot Do?
The support foot is part of the equipment's housing and control assembly and provides a designated contact/support point for the tool.
A properly fitted support foot helps maintain the intended configuration and stability of the pole pruner when it is placed down or handled during maintenance and transport.
Signs the Support Foot May Need Replacement
Inspect the support foot if you notice:
-
Cracks or broken sections.
-
Excessive wear.
-
A missing support foot.
-
Loose or damaged mounting points.
-
Instability when the tool is placed on a surface.
-
Damage to the surrounding motor housing.
Replacing a damaged support foot can help restore the equipment to its original configuration.
Installation
Before replacing the support foot:
-
Remove the battery from the cordless tool.
-
Make sure the tool is switched off.
-
Inspect the surrounding motor housing and mounting area.
-
Remove the damaged component according to the applicable STIHL service procedure.
-
Install the new LA01 007 1002 Support Foot.
-
Verify that it is securely positioned before operating the tool.
Always follow STIHL's applicable safety and service instructions.
Important Compatibility Note
This part is listed for the HTA 135, HTA 150.0, and HTA 160.0. Because STIHL equipment can have model-specific configurations, confirm the exact model and applicable parts diagram before purchasing.
