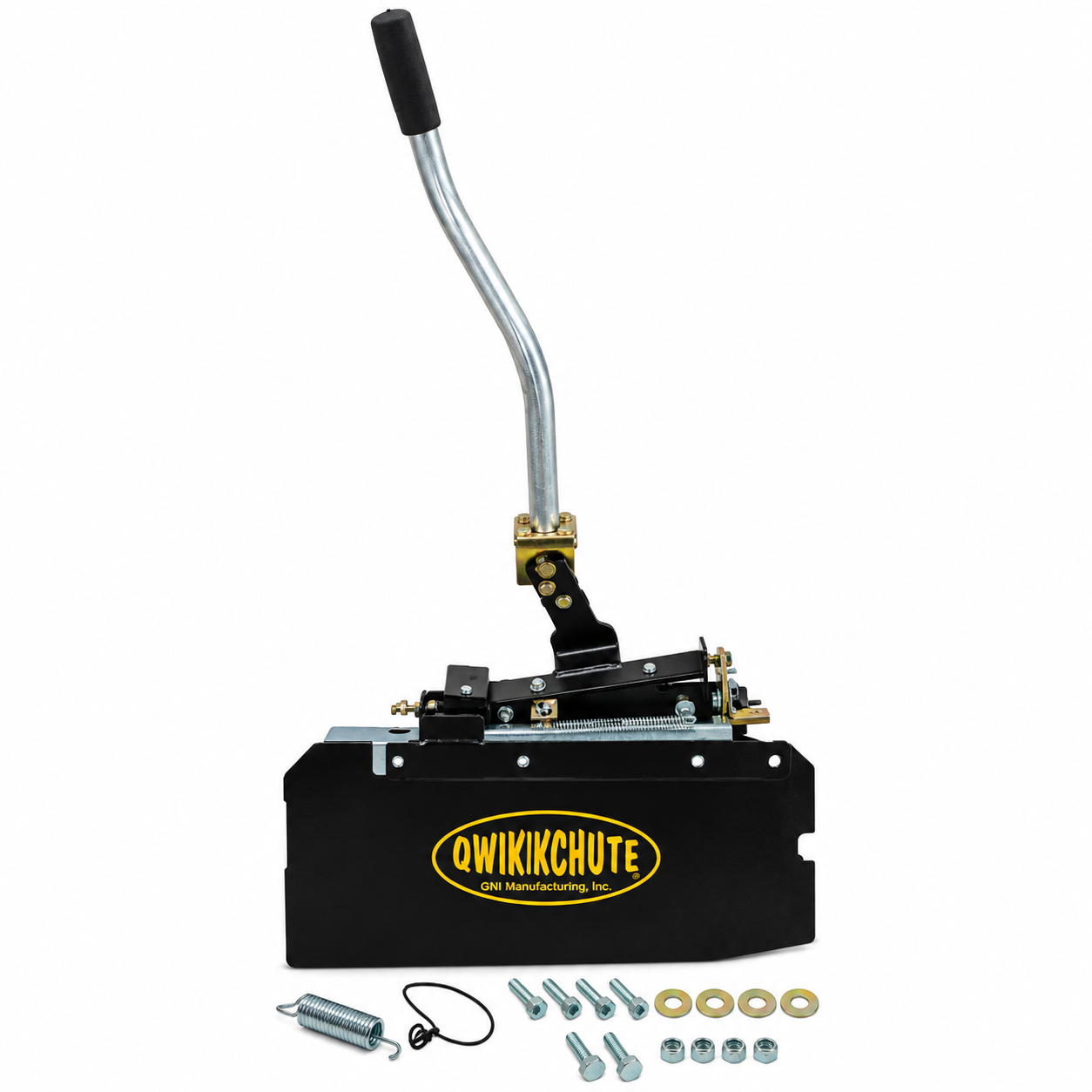

QWIKCHUTE® NQD-WSAC52LH Discharge Chute Control Kit
The QWIKCHUTE® NQD-WSAC52LH is a heavy-duty, operator-controlled discharge chute system designed to provide fast, precise control of grass discharge direction and flow. Built for durability and ease of use, this kit allows operators to fully open, fully close, or partially open the chute without leaving the seat—improving safety, efficiency, and cleanup results.
Key Features
-
Quick, on-the-fly control of discharge direction
-
Long left-hand handle for ergonomic operation
-
Multiple handle adjustment positions for optimal operator comfort
-
Heavy-duty steel components for long service life
-
Simple spring-assist operation for smooth opening and closing
-
Designed for weekly lubrication and minimal maintenance
Operating Modes
-
Fully Open: Move handle away from the operator quickly
-
Fully Closed: Move handle toward the operator quickly
-
Partially Open: From closed position, move handle away until the stay bar engages, then release
(Partial open feature available on select models)

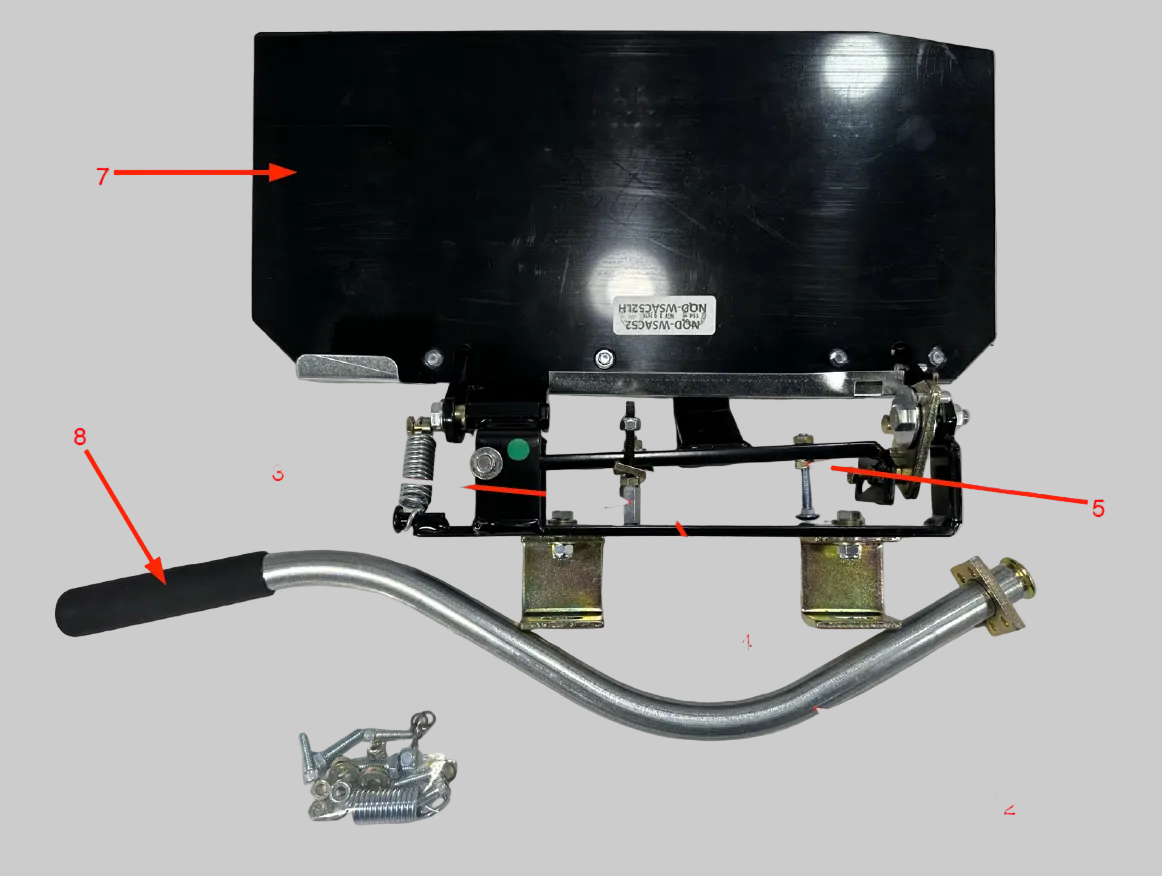

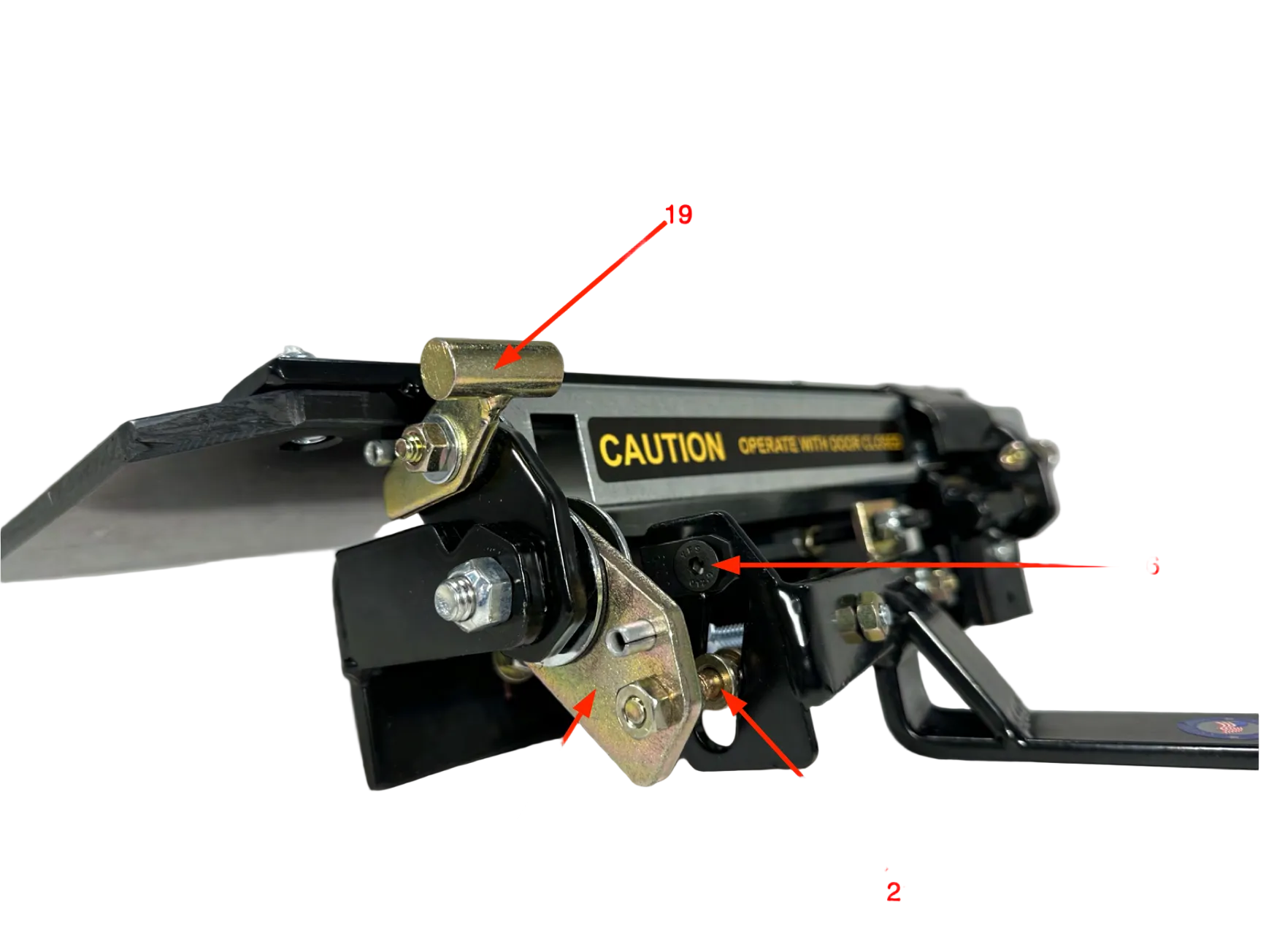

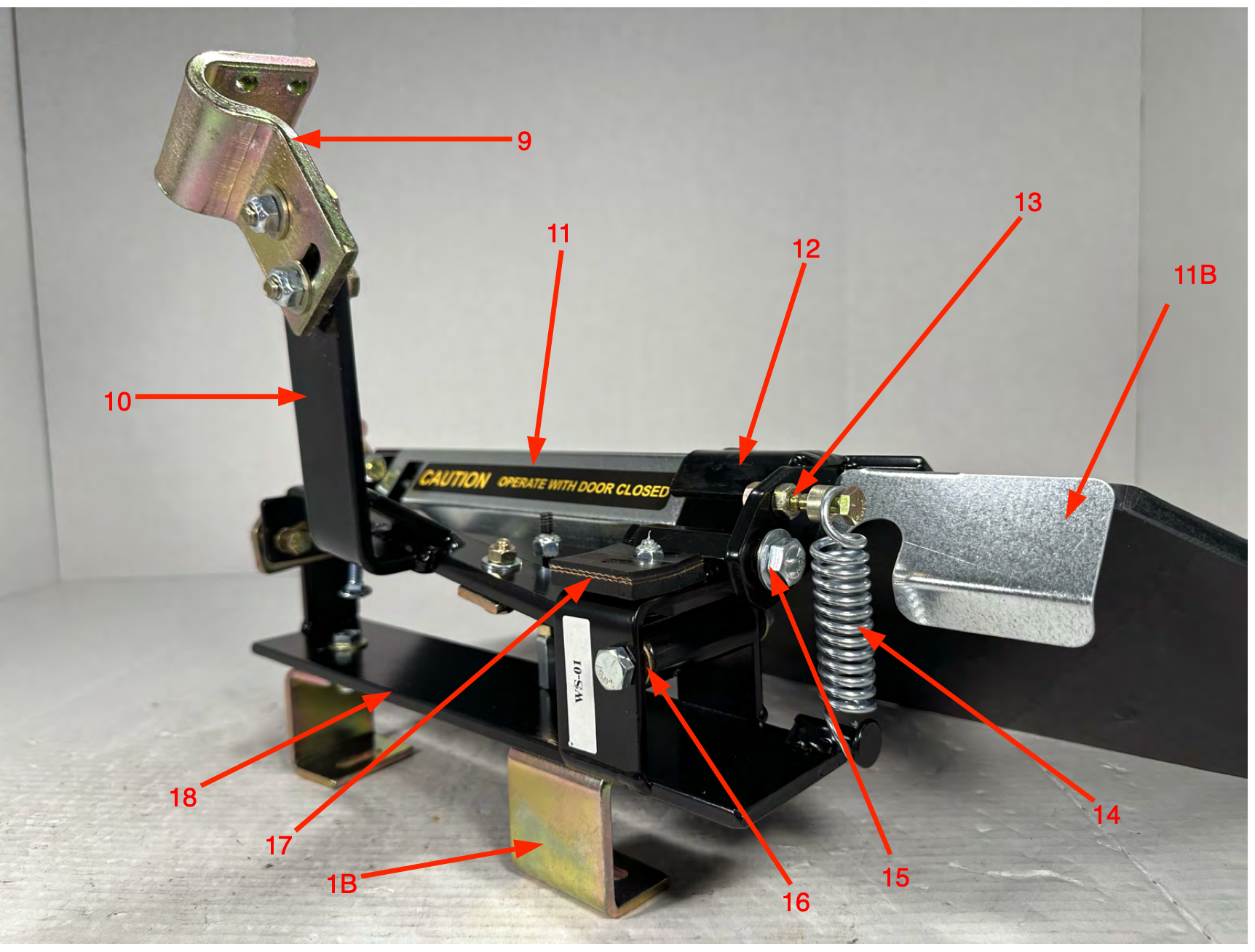

Kit Contents
-
Base Plate – WSAC (WS-01)
-
Door Bar – Standard (NQD-080)
-
Handle Pivot – Standard (NQD-075)
-
Handle – Long, Left-Hand (NQD-092LH)
-
Door – NQD-WSAC52
-
Center Deflector – Standard (NQD-100)
-
End Deflector – Full (NQD-121-1)
-
Mounting Brackets – (2) UB-01 U-Brackets, 2-3/16" tall (pre-installed)
Hardware Kit Includes
-
(4) 1/4-20 × 7/8" Socket Head Bolts
-
(4) 1/4-20 Grade 8 Nuts
-
(2) 5/16-18 × 1" Grade 5 Hex Bolts
-
(4) 5/16 SAE or 1/4 USS Washers
-
(2) 5/16-18 Nylock Nuts
-
(1) NQD-097 Spring
-
(1) Spring Puller
Installation & Adjustment
The handle assembly allows rotation at both the base and pivot, providing multiple positioning options for maximum forward or rearward adjustment. A spring-assist system ensures smooth operation—do not over-stretch the spring during installation. Detailed installation steps are included with the product.
Maintenance
-
Oil all bearing points weekly or as needed
-
Inspect fasteners periodically for secure fit
Warranty
GTM Manufacturing, Inc. warrants this product to the original purchaser against defects in materials and workmanship for 90 days from the date of purchase.
Warranty service requires:
-
Proof of purchase
-
Completed warranty registration
Warranty does not cover shipping damage, lack of maintenance, unauthorized modifications, or non-approved repairs.
