Description

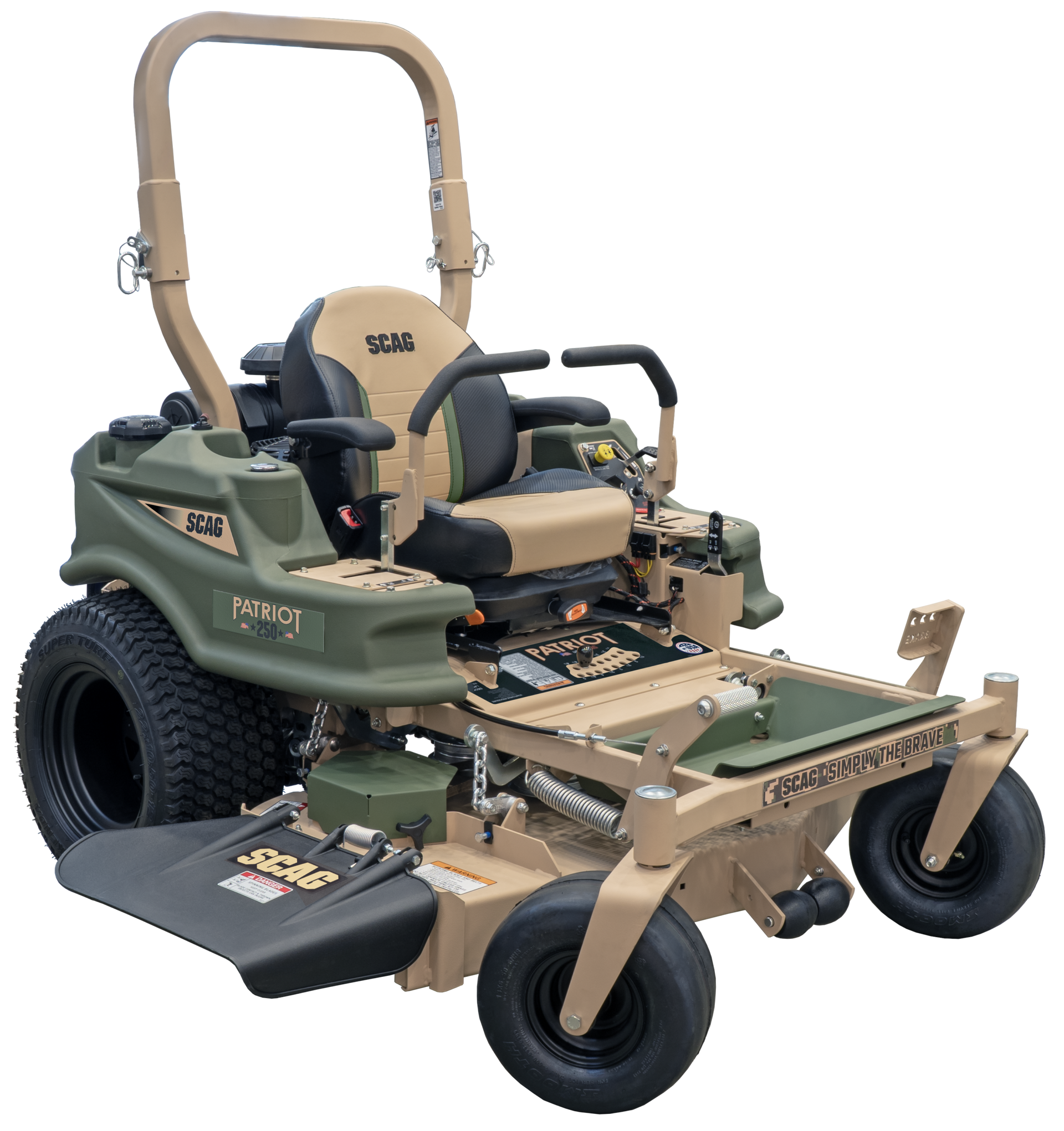

SCAG PATRIOT SPZ-52H-22FX 52-INCH ZERO-TURN MOWER
SUPPORTING OUR HEROES
This limited-edition Scag “Simply the Brave” mower honors America’s military members and first responders. For every eligible mower sold, Scag makes a donation to the Gary Sinise Foundation’s First Responders Outreach program and A Soldier’s Child Foundation. The special color may be different, but this is the same tough and dependable Scag mower trusted by professionals and homeowners across the country. Quantities are limited.
PRODUCT OVERVIEW
The Scag Patriot SPZ-52H-22FX is built for professional landscapers and demanding property owners who need dependable performance and commercial-grade durability.
This model is powered by a 22 HP Kawasaki FX Series engine and features a 52-inch Hero Cutter Deck. Its strong construction, comfortable suspension seat and smooth Hydro-Gear drive system make it an excellent choice for long mowing days.
KEY FEATURES
-
22 HP Kawasaki FX Series engine
-
52-inch Hero Cutter Deck
-
Hydro-Gear ZT3100 transaxle drive system
-
Up to 8.5 mph forward speed
-
5 mph reverse speed
-
6.5-gallon fuel capacity
-
Cutting height from 1.5 to 5 inches
-
Torsion-spring suspension seat
-
Foot-operated deck lift
-
Foot-operated parking brake
-
Heavy-duty steel frame
OGURA GT2 PTO CLUTCH
The Ogura GT2 PTO clutch brake provides smooth blade engagement, fast blade stopping and 108 ft.-lb. of holding strength.
Unlike many nonadjustable clutches, the Ogura clutch has an adjustable air gap. As the clutch wears, it can be adjusted back to the proper specification, helping extend its service life and reduce replacement costs.
HERO CUTTER DECK
The 52-inch Hero Cutter Deck features dual-plate steel construction with additional reinforcement around the deck spindles. The cutting height can be adjusted from 1.5 to 5 inches in quarter-inch increments.
SPECIFICATIONS
Model: SPZ-52H-22FX
Engine: Kawasaki FX Series
Horsepower: 22 HP
Cutting Width: 52 inches
Deck Type: Hero Cutter Deck
Drive System: Hydro-Gear ZT3100
Forward Speed: Up to 8.5 mph
Reverse Speed: Up to 5 mph
Fuel Capacity: 6.5 gallons
Drive Tires: 22 x 10.5-12
Caster Tires: 13 x 6.5-6
Blade Engagement: Ogura GT2 PTO clutch
Clutch Holding Strength: 108 ft.-lb.
WARRANTY
Commercial Use: 2-year commercial machine warranty.
Non-Commercial Use: 3 years or 500 hours, whichever comes first.
Wear Items and Rental Use: 90-day warranty.
Engine Warranty: The engine is covered separately by the engine manufacturer. See the engine owner’s manual for complete warranty information.
Actual product appearance may vary. Contact Barry’s Power Equipment for current availability, financing options and additional information.
